Miniature Bearings Australia

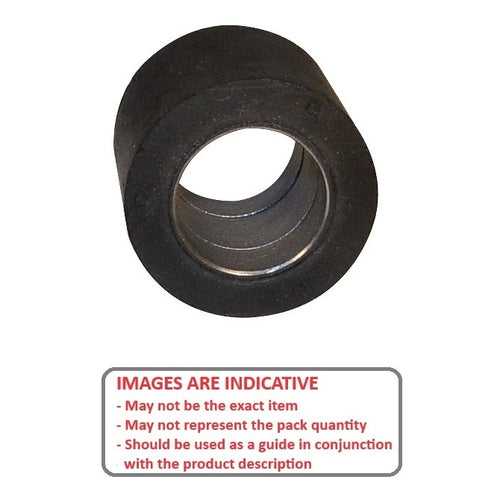

RR-1142RS - Datasheet
MBA
Category Information
Rollers - Solid Shaft Mount - Bonded Insert - Black NeopreneBlack Neoprene Bonded Insert Solid Shaft Mount Rollers. Used on conveyors, belt idlers, shock cushioners, stamping die part guides, supports etc.
- Designed for use in machines and assembly operations where part movement and protection is needed.
Product Data

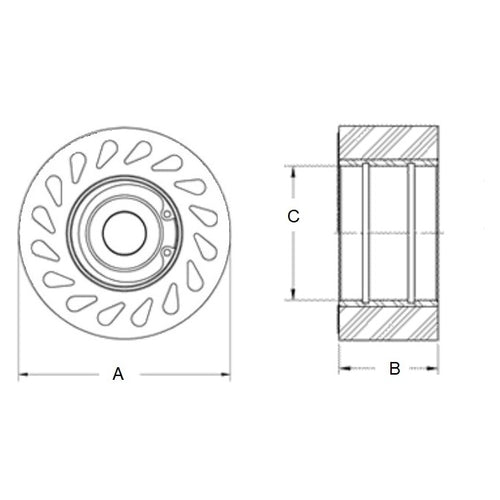

- Diameter (A) : 38.10 mm
- Length (B) 31.75 mm
- Bore (C) 22.28 - 22.35 mm
- Durometer 60
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
