CCI-03500-C - Datasheet
MBA
Category Information

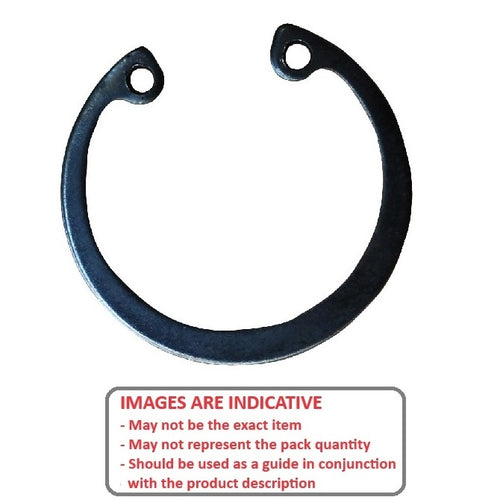

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data

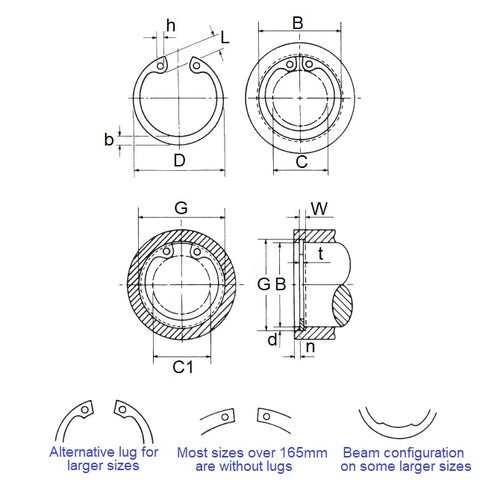

- Housing Bore (B)
:
35.00
mm
(Equiv. 1.378 in.) - Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.06
(Equiv. 0.059 in.) - Groove Dia. (Dg)
37.00
mm
+ 0.25 / - 0.00
(Equiv. 1.457 in.) - Approx. Loose Circlip OD (Dr) 37.80 mm + 0.50 / - 0.25
- Groove Width (W) 1.60 mm + 0.10 / - 0.00
- Clearance in Bore (C) 23.60 mm
- Clearance in Groove (C1) 26.20 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 3.00
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-035
- Bossard® BN-822-035
- Waldes® D1300-035
- Huyett® DHO-035
- NoCor® DHO-035
- Rotor Clip® DHO-035
- Seeger® J-035
- Seeger® J35
- Seeger® J35-BLS
- Seeger® J35X1.5
- Seeger® NZT.J35
- DHO035
- D13000350APP
- D1300-0350
- D1300-0350APP
- 472035
- J035
- J35BLS
- BN822035
