CCE-03500-CZ - Datasheet
MBA
Category Information

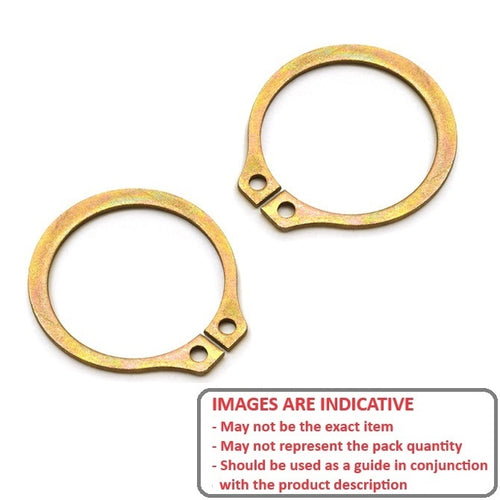

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Shaft Diameter (Ds) : 35.00 mm
- Clip Thickness (T)
1.50
mm
+ 0.00 / - 0.06
(Equiv. 0.059 in.) - Groove Dia. (Dg)
33.00
mm
+ 0.00 / - 0.25
(Equiv. 1.299 in.) - Approx. Loose Circlip ID (A) 32.20 mm
- Groove Width (W) 1.60 mm
- Clearance on Shaft (C1) 46.80 mm
- Clearance in Groove (C1) 44.20 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 3.00
- Standard DIN471
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-035-ZC
- 90154A724
- Seeger® A-035-ZC
- Seeger® A35X1.5Z
- Bossard® BN818-035-ZC
- Waldes® D1400-035-ZC
- NoCor® DSH-035-ZC
- Rotor Clip® DSH-035-ZC
- BN818035ZC
- A035ZC
- D1400035ZC
- D14000350AZD
- D1400-0350AZD
- 471035ZC
- DSH035ZC
