SUG-524RS - Datasheet
MBA
Category Information

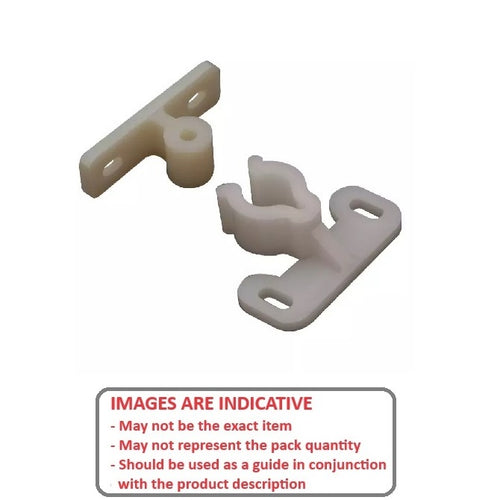

Catches - KnuckleKnuckle Catches. Strong and light polyacetal and polyamide. Holds cabinets secure with 7kg of pull force.
Product Data

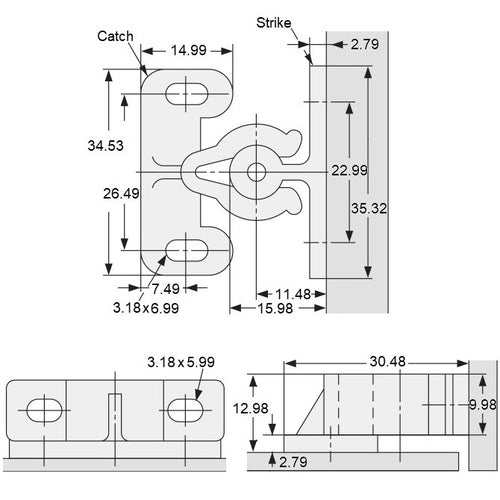

- Catch Length : 34.5 mm
- Catch Width 15 mm
- Catch Height 13 mm
- Strike Length 35.3 mm
- Strike Width 16 mm
- Strike Height 13 mm
- Push in Force 6 kg
- Pulling Force 7 kg
