MAG-P-30-019-AX - Datasheet
MBA
Category Information

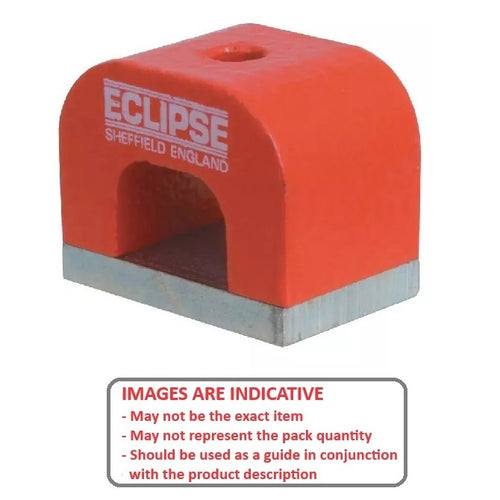

Magnets - Power AlnicoPower Alnico Magnets. Supplied with keeper
- Permanent magnet made from an alloy of Aluminum, Nickel, and Cobalt, along with iron and sometimes other metals like copper or titanium.
- Known for their excellent heat resistance and corrosion resistance, making them ideal for high-temperature applications like electric motors, sensors, and speakers.
- While weaker than rare-earth magnets, Alnico magnets are more durable and stronger than ferrite magnets.
Product Data

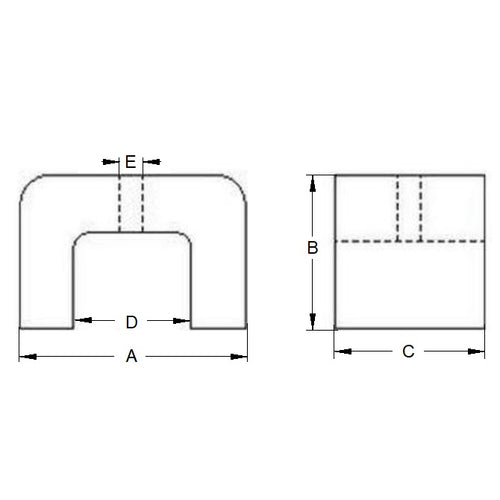

- Length (A)
:
30.16
mm
(Equiv. 1.187 in.) - Height (B)
19.05
mm
(Equiv. 0.75 in.) - Width (C)
19.05
mm
(Equiv. 0.75 in.) - D 14.29 mm
- E 3.96 mm
- Pull 4.46 kg
Product Compliance and Data
Additional Resources
Cross References
- 811
