Miniature Bearings Australia
RP039-0286-C - Datasheet
MBA
Category Information

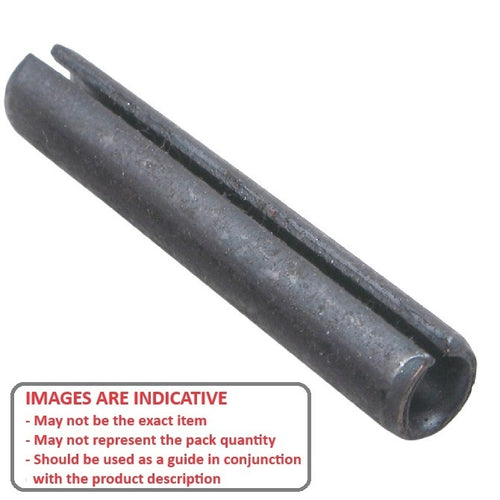

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 3.97 mm
- Length (L) 28.58 mm
- Free Diameter 4.37 mm
- Thickness (S) 0.81 mm
- Chamfer Length (cL) 0.25-1.22 mm
- Chamfer Diameter (cD) 3.8 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 801097
- Huyett® SPP-156-1125
- NoCor® SPP-156-1125
- NoCor® SPP-156-1126
- SPP1561125
- SPP1561126
