PSP-039-025-S420 - Datasheet
MBA
Category Information

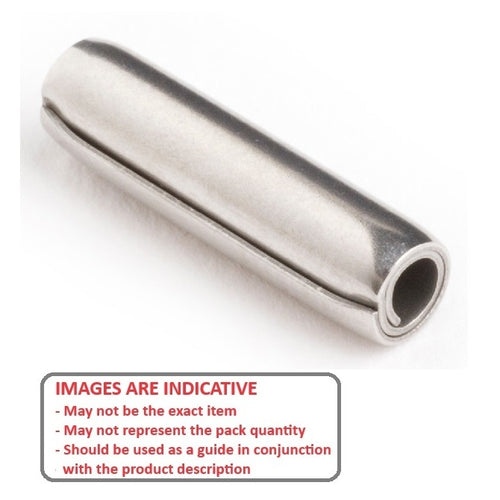

Pins - Coiled - Stainless - Standard DutyStandard Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data

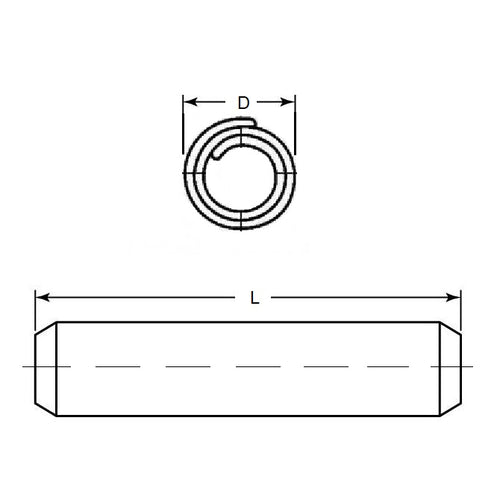

- Nominal Hole Diameter : 3.97 mm
- Length
25.40
mm
+/- 0.50
(Equiv. 1 in.) - Drill Size 3.97 - 4.06 mm
- Loose Diameter 4.14 - 4.34 mm
- ISO Standard Duty ISO8750 / ASME B18.8.3M
- Hardness Unhardened
- Material Stainless Steel AISI 420C PV
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPCSP-156-1000
- NoCor® SPCSP-156-1000
- SPCSP1561000
