KW-040-062-153-CH - Datasheet
ExaktKey
Category Information

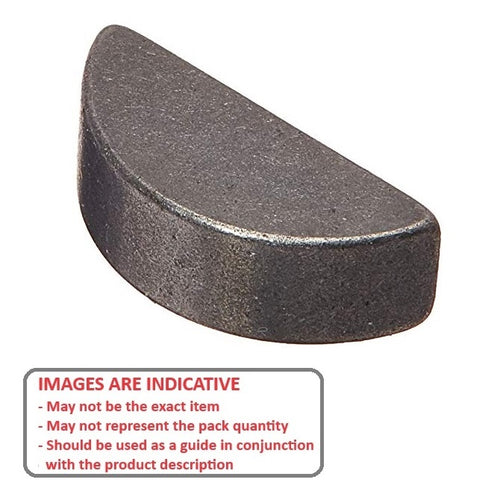

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
3.97
mm
+/- 0.025
(Equiv. 0.156 in.) - Approx. Height (H)
6.2
mm
+/- 0.250
(Equiv. 0.244 in.) - Approx. Length (L) 15.29 mm
- Basis Diameter (D) 15.88 mm
- Finish Plain
- Hardness HRC 40-50
- Material Carbon Steel C45 Hardened
Product Compliance and Data
Additional Resources
Cross References
- NoCor® 505H
- ANSI 505-H
- Key Size 6 Hardened
- Huyett® WKA-006
- NoCor® WKA006
- KW039159CH
