HPE-040-08-012-C - Datasheet

MBA

Category Information

Pins - Hitch External

Hitch External Pins. Similar to R-Clips, but designed for both arms to fit around a shaft groove rather thand having one arm through a bored hole.

    Product Data

    • Recommended Groove Diameter : 3.97 mm
    • Rec. Groove Width 1.2 mm

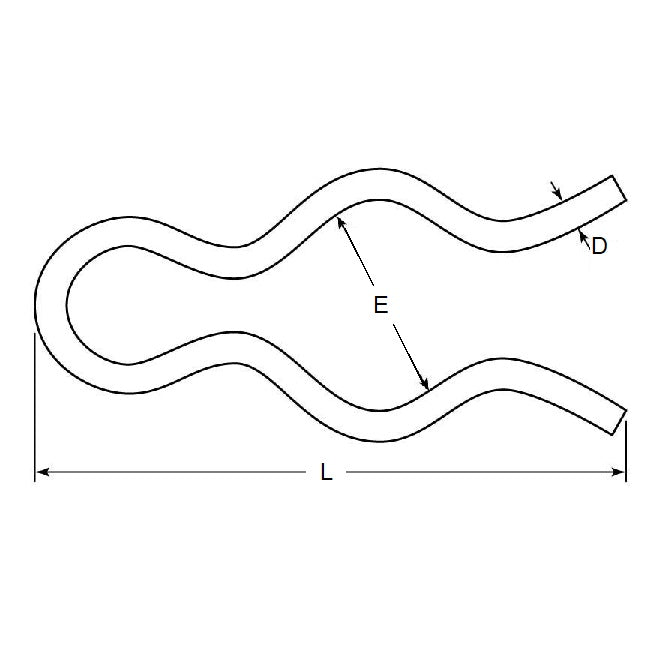

    • Wire Thickness (D) 0.8 mm
    • Inside Eye Diameter (E) 3.2 mm
    • Length (L) 11.9 mm
    • Material Spring Wire, Oil-Tempered
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • Geri Systems GERI-INS-01-U
    • SPB HPE-0397-081X0119
    • PI PI-0023291
    • HPE0397081X0119
    • PI0023291
    • GERIINS01U
    • A9Q34X1
    • A9Q34-X1
    View full details

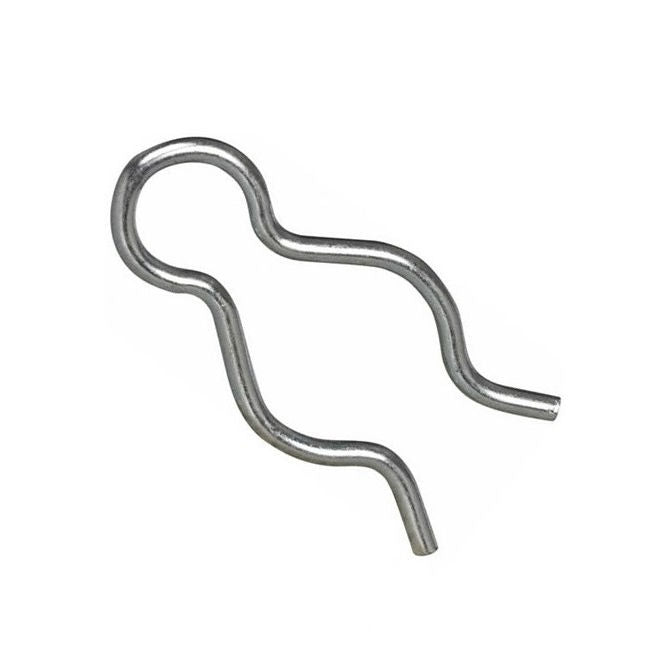

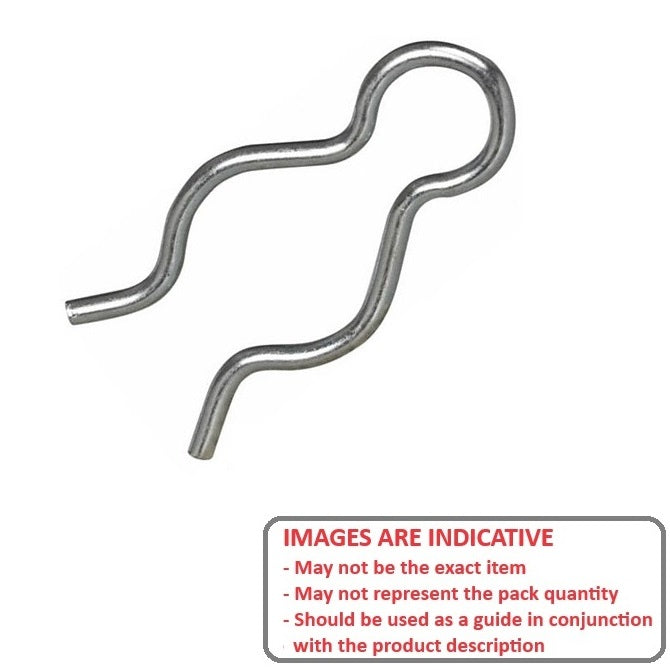

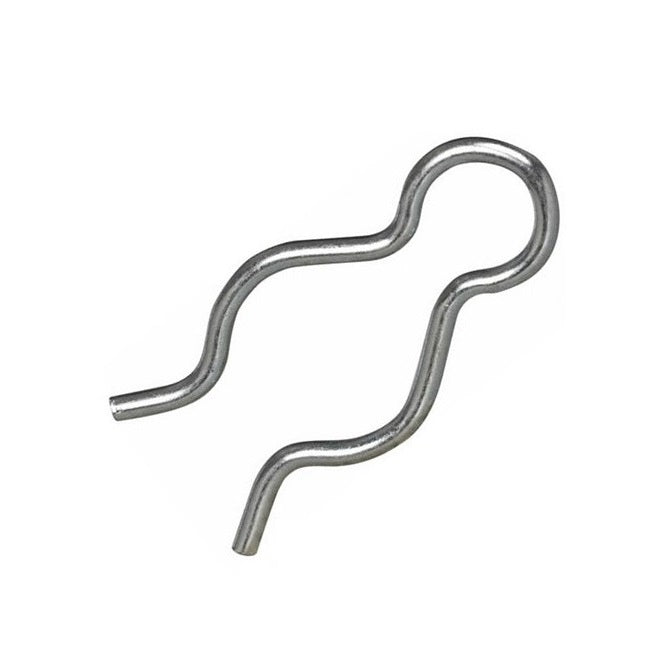

    HPE-040-08-012-CDiagramHPE-040-08-012-CImage
