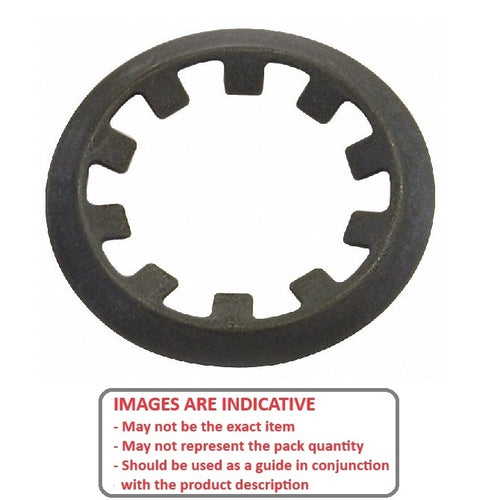

RPO-039-041-C - Datasheet
MBA
Category Information
Retaining Rings - Push On - Carbon SteelCarbon Steel Push On Retaining Rings. M1465 / DTX / Seeger ZA and KS.
- An expanded range may be available on special order. Please enquire.
- Thrust load shown is calculated for ideal conditions with mild steel shaft.
- If no thrust load is shown, testing is suggested.
Product Data

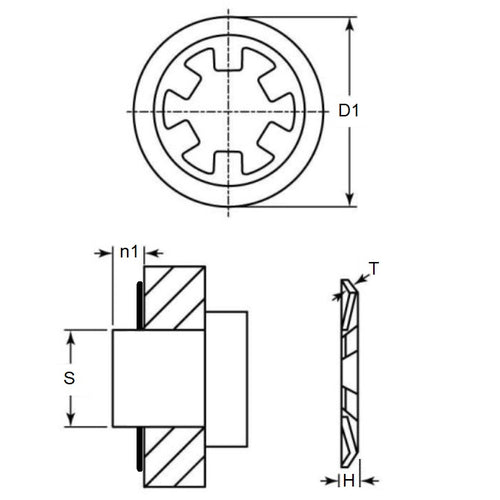

- Min shaft size (s1) : 3.86 mm
- Max Shaft Size (s2) 4.06 mm
- Outside diameter (D1) 10.08 mm
- Min shaft extension (n1) 1.47 mm
- Height (H) Max. 1.09 mm
- Material Thickness (t) 0.25 mm
- Approx. Thrust Load 20 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Waldes® 5115-015
- 98430A119
- Huyett® TX-015
- NoCor® TX-015
- Rotor Clip® TX-015
- TX015
- N14650015
- N1465-0015APP
- N1465015
- N1465-015
- N14650015APP
- 5115015
