KM095C-057-CS-PH64 - Datasheet

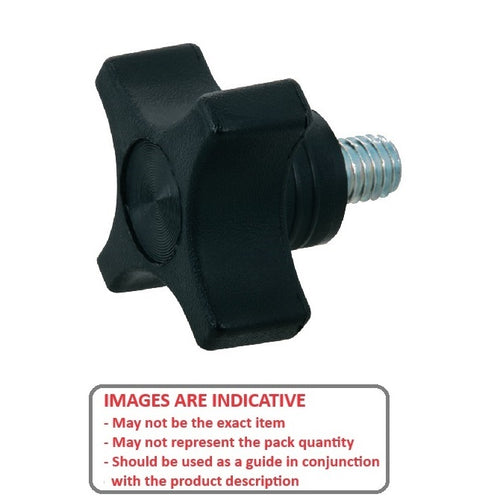

Name: 1087030 | KM095C-057-CS-PH64 (Each) --- Cross Knobs - 3/8-16 UNC - 9.53mm - 57.15x63.5 mm Male - Plated Steel Knob
Rating: 5.0 (1 reviews)

MBA

Category Information

Knobs - Cross - Male

Male Cross Knobs. Black Plastic Knob with thread.

4 Prong cross knobs with threads.

Product Data

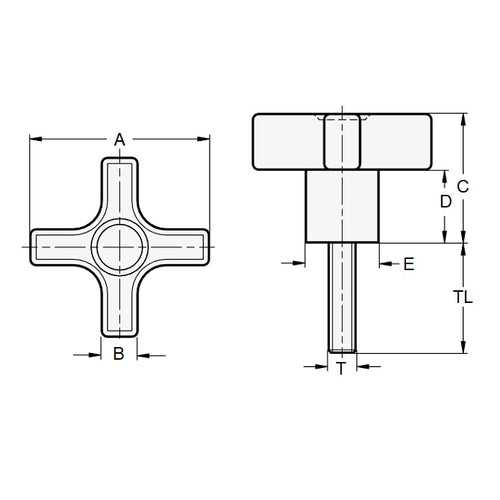

Thread Size : 3/8-16 UNC (9.53mm)
Head Diameter (A) 57.15 mm
Thread Length 63.5 mm
Knob Length (C) 28.58 mm
Hub Diameter (E) 25.40 mm
Hub Length (D) 14.29 mm
Material Plated Steel

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Knobs PDF Quick Guide by Thread Size

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® DK-705
DK705
