KM095C-050-5L20-ST - Datasheet

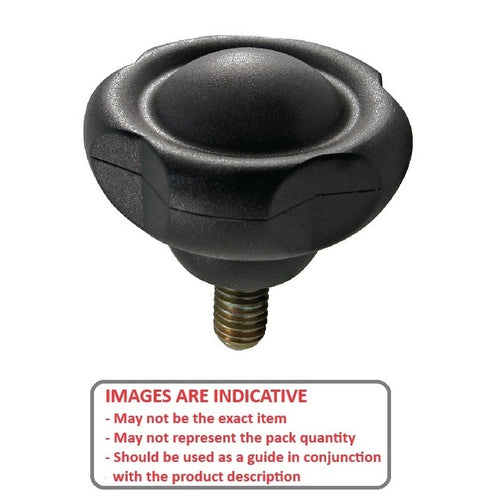

Name: 1086880 | KM095C-050-5L20-ST (Each) --- Lobe Knobs - 3/8-16 UNC - 9.53mm - 50x20 mm Five Lobe - Plated Steel Knob
Rating: 5.0 (1 reviews)

MBA

Category Information

Knobs - Lobe - Five Lobe - Male - Thermoplastic

Thermoplastic Male Five Lobe Lobe Knobs. Also see star knobs

An expanded range may be available on special order. Please enquire.

Product Data

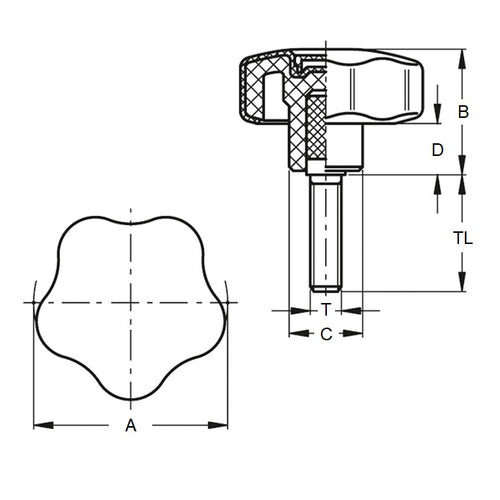

Thread Size : 3/8-16 UNC (9.53mm)
Head Diameter (A) 50.00 mm
Thread Length 20.0 mm
Colour Black
Hub Diameter (C) 28.19 mm
Hub Length (D) 11.43 mm
Knob Height (B) 34.80 mm
Material Plated Steel

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Knobs PDF Quick Guide by Thread Size

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® KBP-337
KBP337
