KF095C-048-TRT - Datasheet

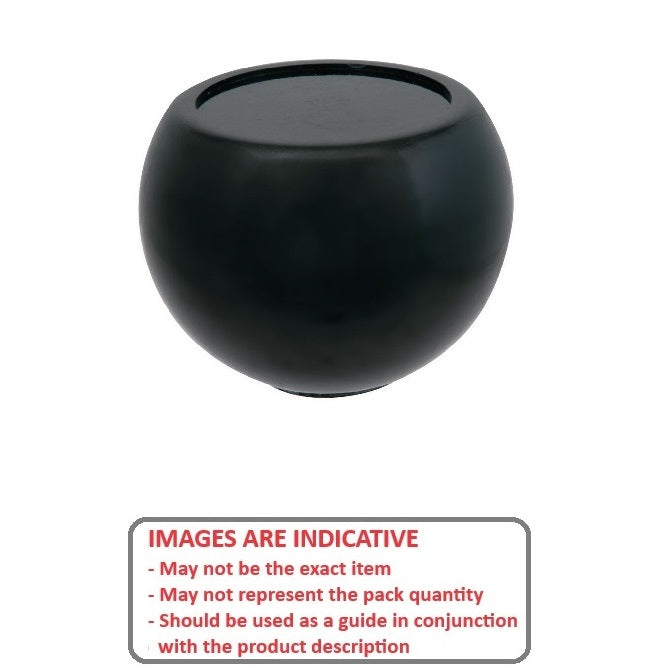

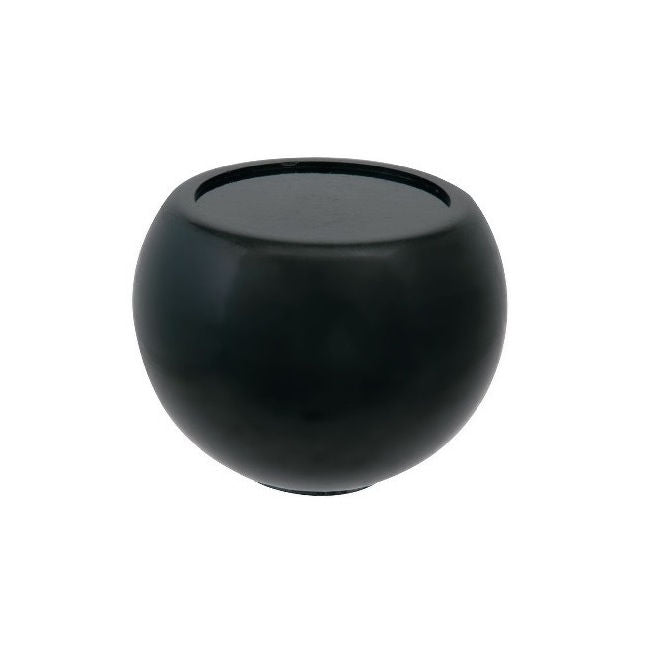

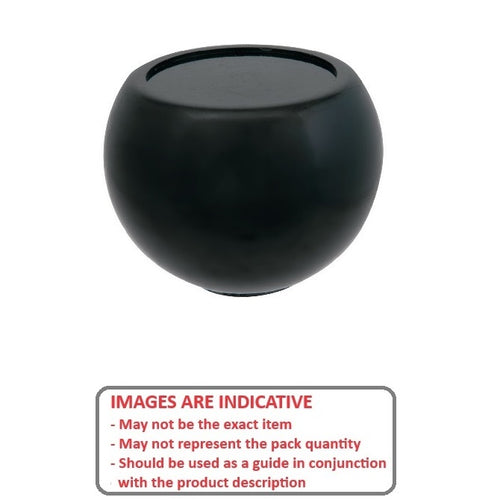

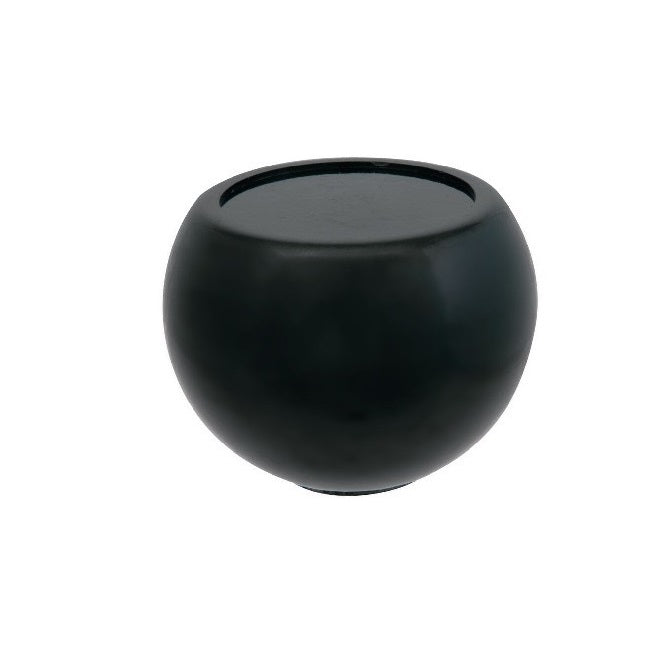

Name: 1086862 | KF095C-048-TRT (Each) --- Ball Knobs - 3/8-16 UNC - 9.53mm - 47.63x12.7 mm Female Threaded - Plastic Knob
Rating: 5.0 (1 reviews)

MBA

Category Information

Knobs - Ball - Female Threaded - Recessed Top

Recessed Top Female Threaded Ball Knobs. Brass threaded insert

An expanded range may be available on special order. Please enquire.
Phenolic

Product Data

Thread or Hole Size : 3/8-16 UNC (9.53mm)

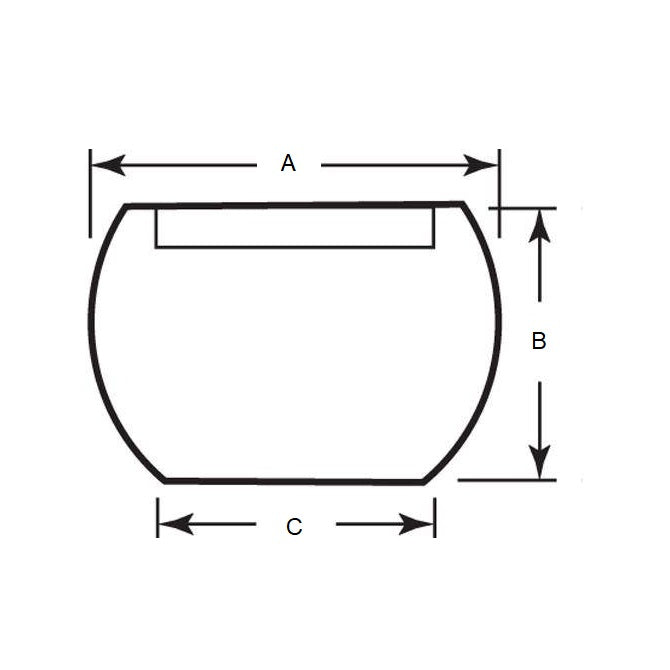

Head Diameter (A) 47.63 mm
Thread Depth 12.7 mm
Height (B) 37.31 mm
Top Diameter (C) 19.05 mm
Material Plastic

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Knobs PDF Quick Guide by Thread Size

Measuring Small Parts
Metalworking Resource Guide

Cross References

Reid Tool® DK-760
DK760
