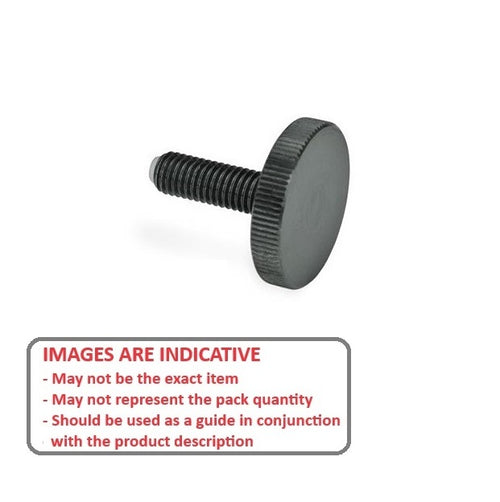

THS095C-076-K-CS-FT - Datasheet

MBA

Product Data

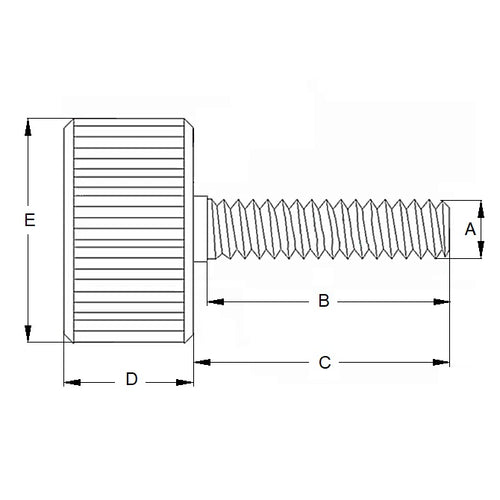

• Thread Size (A) : 3/8-16 UNC (9.53mm)
• Thread Length (B) 76.20 mm
• Head Diameter (E) 22.23 mm
• Head Height (D) 7.94 mm
• Material Stainless Steel 303/304 (Similar to A2 or 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
