CHE-11RS - Datasheet

MBA

Category Information

Eye Bolts - Partial Threaded Shank - Plain - Carbon Steel

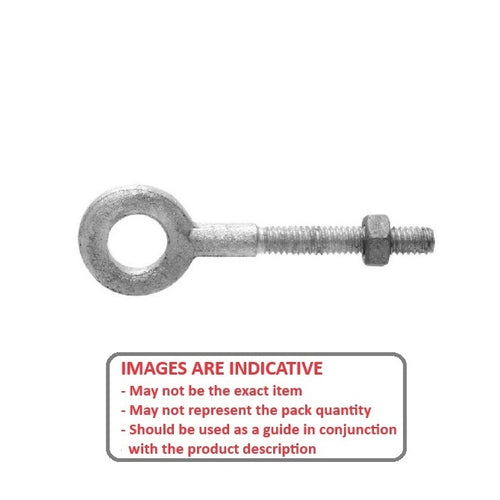

Carbon Steel Plain Partial Threaded Shank Eye Bolts. Hot galvanised finished steel with machine thread.

  • Fastener with a loop or eye at one end, and a partial threaded shank on the other.
  • Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
  • Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
  • Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.

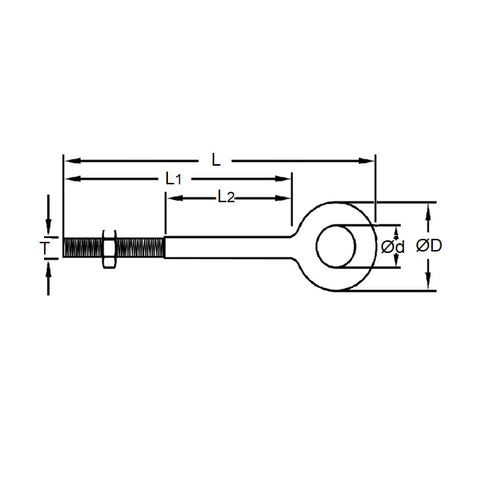

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Shank Length 63.500 mm
    (Equiv. 2.5 in.)
  • Eye Inside Diameter 19.050 mm
    (Equiv. 0.75 in.)
  • Rated Capacity 544 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 3016T32
