S683A-ZZ-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

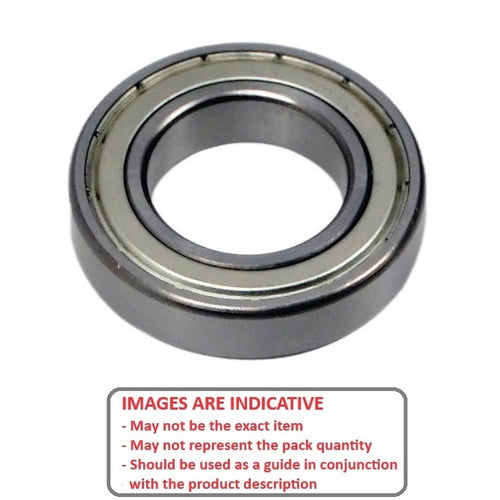

Double shielded standard stainless steel bearing

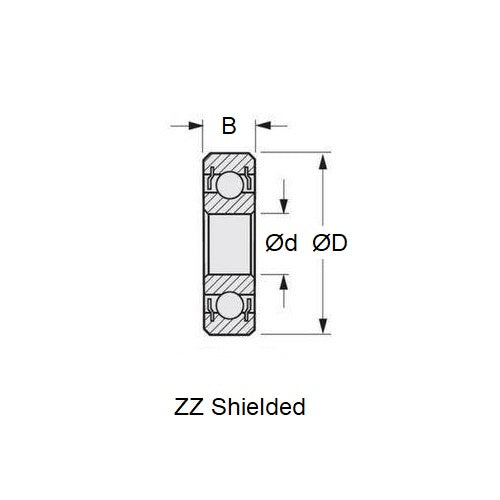

ID (d) : 3.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.118 in.)
O.D. (D) 7.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.276 in.)
Width (B) 3.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.118 in.)
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part 683A
Limiting Speed 63000
Cage Type Standard
Static Load Rating KGf 11
Dynamic Load Rating KGf 32
Radii 0.10 mm
Inner Shoulder (UI) 3.85mm
Outer Shoulder (UO) 6.35 mm
Number of Balls 8
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP
