W0035-CU-010-024-S3 - Datasheet
Brighton Best
Category Information

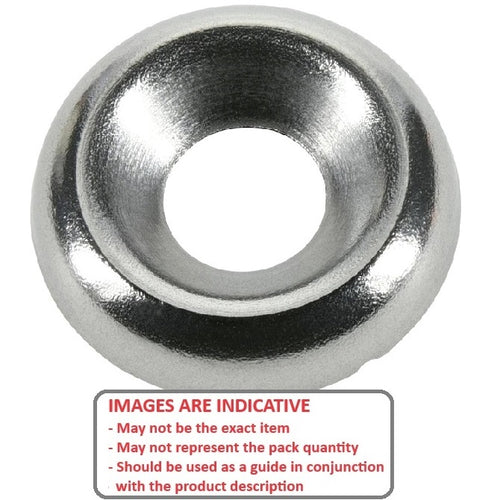

Washers - Cup - Stainless SteelStainless Steel Cup Washers. Stanless steel cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.
Product Data

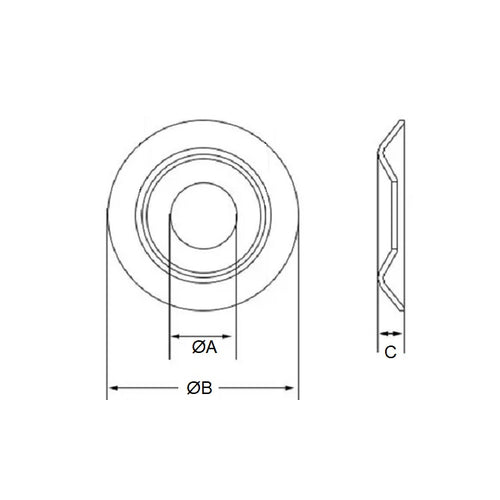

- Nominal Inside Diameter (A) : 3.5 mm
- Nominal Outside Diameter (B) 10.30 mm
- Nom. Section (C) 2.40 mm
- Size 6 UNC / UNF
- Actual ID (Ref) 3.8 mm
- Material Stainless Steel 303 PV (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 223002
- 98466A007
