CC-034-040-C - Datasheet
MBA
Category Information
Retaining Rings - CrescentCrescent Retaining Rings. Variation of an E-Clip with an open face. Also known as a C-Clip.
- Narrow section height provides good clearance capabilities.
- Absence of teeth and deep set mean less thrust load ratings than e-clips.
- For best results install using the recommended applicator tool.

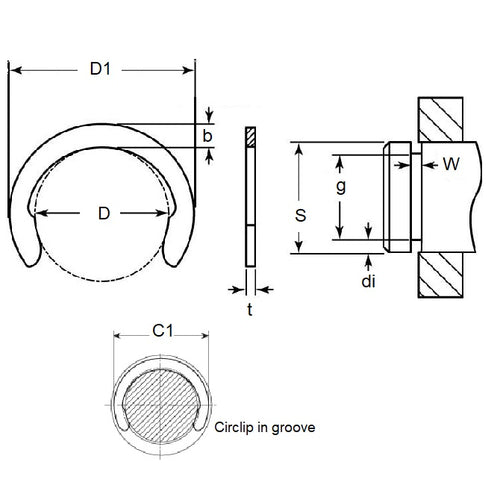

Product Data
- Groove Diameter (G) : 3.43 mm
- Shaft Diameter (S) 3.96 mm
- Thickness (t) 0.38 mm
- Clip OD in groove (C1) 5.59 mm
- Clip OD Loose (D1) 5.21 mm
- Groove Width (W) 0.46
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Military 16632-015
- Waldes® 5103-015
- Ellison® 9103-015
- NoCor® C-015
- Rotor Clip® C-015
- Huyett® C-015/B
- C015
- N1800015
- N1800-0015APP
- N18000015APP
- N1800-015
- 16632015
- 9103015
- 5103015
