PC032-0318-6 - Datasheet
MBA
Category Information

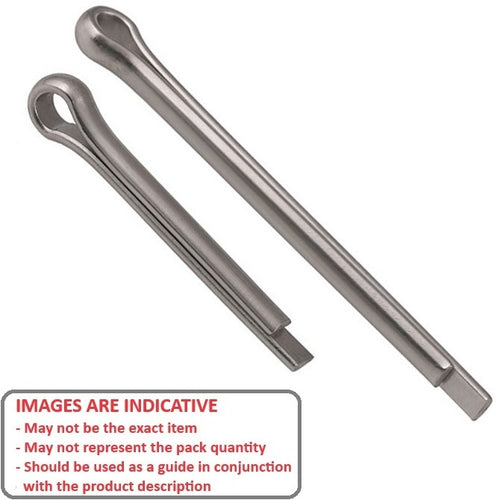

Pins - Split - Stainless SteelStainless Steel Split Pins. Longer lengths may be cut back to a suitable length.
- An expanded range may be available on special order. Please enquire.
- Hole size indicated is maximum for the pin to be effective.
- If the pin you require is not available, you may be able to use the next larger diameter so long as the pin is smaller than your hole size.
Product Data
- Maximum Hole Diameter : 3.2 mm
- Nom. Pin Length (L) 32.0 mm
- Nom. Pin Diameter (D) 2.9 mm
- Nom. Overall Length 38 mm
- Material Stainless Steel 316 (Similar to A4 or 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 98355A145
- Huyett® CPS16-125-1250
- NoCor® CPS16-125-1250
- CPS161251250
