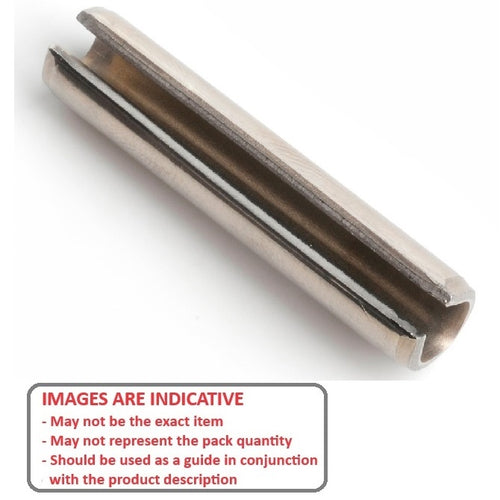

RP032-0381-420 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 3.18 mm
- Length (L) 38.10 mm
- Free Diameter 3.50 mm
- Thickness (S) 0.71 mm
- Chamfer Length (cL) 0.20-1.12 mm
- Chamfer Diameter (cD) 3.1 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 803077
- 92383A704
- Small Parts DWX-2-24
- NoCor® SPS420-125-1500-420SS
- Huyett® SPSP-125-1500
- NoCor® SPSP-125-1500-420SS
- SPSP1251500420SS
- SPS4201251500420SS
- DWX224
- A9Y350448
- A9Y35-0448
