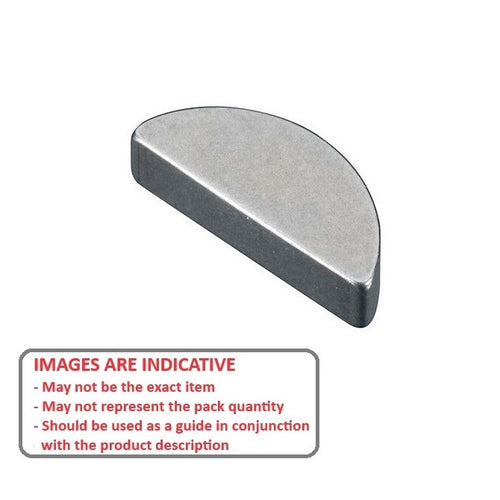

KW-032-062-153-S3 - Datasheet
ExaktKey
Category Information
Keys - Woodruff - 303 Stainless Steel303 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
3.18
mm
+/- 0.025
(Equiv. 0.125 in.) - Approx. Height (H)
6.2
mm
+/- 0.250
(Equiv. 0.244 in.) - Approx. Length (L) 15.29 mm
- Basis Diameter (D) 15.88 mm
- Material Stainless Steel 303 (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor® 405SS
- ANSI 405-SS
- NoCor® A9X490420
- Key Size 5 Stainless
- Huyett® WKS-005
- NoCor® WKS005
- KW032159S3
- A9X49-0420
