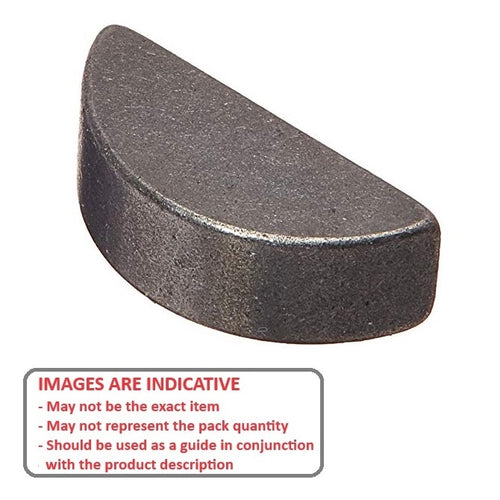

KW-032-050-122-C - Datasheet

ExaktKey

Product Data

• Thickness (S) : 3.18 mm _{+/- 0.025}
  (Equiv. 0.125 in.)
• Approx. Height (H) 5.0 mm _{+/- 0.250}
  (Equiv. 0.197 in.)
• Approx. Length (L) 12.22 mm
• Basis Diameter (D) 12.70 mm
• Finish Plain
• Hardness HRB 80
• Material Carbon Steel C45

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Keysteel Catalogue PDF


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• ANSI 404
• 98481A090
• Key Size 3
• NoCor® WK3
• Reid Tool® WK-3
• Huyett® WKC-003
• NoCor® WKC003
• KW032127C
