Miniature Bearings Australia

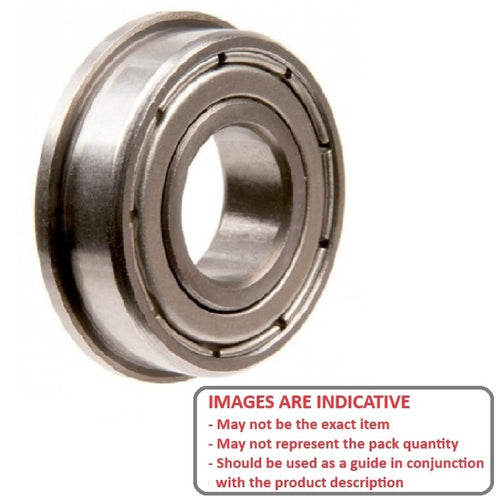

FR2-5A-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

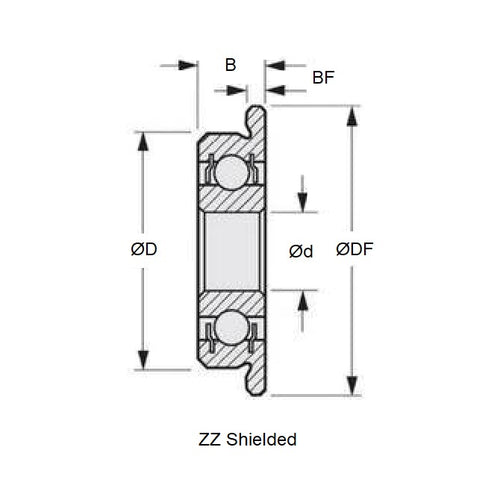

- ID (d)
:
3.175
mm
+ 0.000 / - 0.0075
(Equiv. 0.125 in.) - O.D. (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.) - Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.) - Flange Diameter (DF) 9.119 mm
- Flange Width (BF) 0.787 mm
- Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part FR2-5A
- Limiting Speed 60000
- Cage Type Standard
- Static Load Rating KGf 18
- Dynamic Load Rating KGf 57
- Radii 0.10 mm
- Inner Shoulder (UI) 4.35mm
- Outer Shoulder (UO) 7.10 mm
- Number of Balls 6
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Advanced Racing Products - Agitator - Replacement Bearing
- Advantage Products - Avenger 1/8 Axle Gas - Replacement Bearing
- Advantage Products - Custom Street Machine - Replacement Bearing
- Bolink® - Digger - Replacement Bearing
- Bolink® - Eliminator - Replacement Bearing
- Bolink® - Eliminator 10 - Replacement Bearing
- Bolink® - Eliminator 10 -12 -Sport - Invader - Replacement Bearing
- Bolink® - Eliminator 12 - Replacement Bearing
- Bolink® - Eliminator 12-CF - Replacement Bearing
- Bolink® - Eliminator Gold - Replacement Bearing
- Bolink® - Eliminator Gold - LTO - Replacement Bearing
- Bolink® - Funny Car Nitro - Front Wheel Replacement Bearing
- Bolink® - Hotrod - Front Wheel Replacement Bearing
- Bolink® - Invader - Replacement Bearing
- Bolink® - Invader Off-Road - Replacement Bearing
- Bolink® - Invader Truck - Replacement Bearing
- Bolink® - Legend - Replacement Bearing
- Bolink® - LTO - Replacement Bearing
- Bolink® - Nitro Rail Dragster - Replacement Bearing
- Bolink® - Sport - Replacement Bearing
- Composite Craft® - Lynx Super Speedway 1/8 Front Axle - Replacement Bearing
- Composite Craft® - Predator - Replacement Bearing
- Cox® - GTP Gas - Replacement Bearing
- Cox® - Nissan .049 - Replacement Bearing
- Cox® - Nissan .049 GTP Gas - Replacement Bearing
- Custom Works® - Dominator - Replacement Bearing
- Custom Works® - Dominator With 3 PC. Thrust Bearing. - Replacement Bearing
- Delta® - P4 1/8 Gas - Replacement Bearing
- Delta® - Spider - Replacement Bearing
- Delta® - Villain Cross - Replacement Bearing
- Dialed® - Infinity 10 - Replacement Bearing
- Hyperdrive® - 510 Upgrade - Replacement Bearing
- Hyperdrive® - Pan Scale1/10 - Replacement Bearing
- McAllister® - Outlaw - Replacement Bearing
- Parma® - California Sports Truck - Replacement Bearing
- Parma® - Pro Panther - Replacement Bearing
- Parma® - Pro Panther - California Sports Truck - Replacement Bearing
- Racetech® - Carpet Pro - Replacement Bearing
- Racetech® - G Force - Replacement Bearing
- Schumaker® - Axis Touring Car - Replacement Bearing
- Schumaker® - SST Pro Axis - Replacement Bearing
- Team Associated® - RC10L - Replacement Bearing
- Team Associated® - RC10L - RC12L - Replacement Bearing
- Team Associated® - RC10L SS - Front Wheels Replacement Bearing
- Team Associated® - RC10L3 Touring Sport - Replacement Bearing
- Team Associated® - RC10LSS - Replacement Bearing
- Team Associated® - RC12 Series - Replacement Bearing
- Team Associated® - RC12L - Replacement Bearing
- Team Associated® - RC12L4 Upgrade Option - Replacement Bearing
- Team Associated® - RC500 Gas 4WD - Replacement Bearing
- TRC - Pro 10 1/8 Axle - Replacement Bearing
- TRC - Pro10 - Replacement Bearing
- Trinity® - Black Widow - Replacement Bearing
- Trinity® - Evolution 10 LSS - Replacement Bearing
- Trinity® - Evolution 10 LSS Revolver 12 1/8 Axle - Replacement Bearing
- Trinity® - Reflex 12 - Replacement Bearing
- Trinity® - Reflex 12 Oval - Replacement Bearing
- Trinity® - Revolver 12 - Replacement Bearing
- Trinity® - Spec Car - Replacement Bearing
- Trinity® - Switchblade 1/8 Axle - Replacement Bearing
- Trinity® - Switchblade 12 - Replacement Bearing
- Trinity® - Switchblade 12 SJ - Replacement Bearing
Cross References
- MPB 518FCHH
- MPB 518FC-ZZ
- Bolink® BL-5457
- GRW FBR1-8A-2Z
- NTN® FLRA2-5-ZZA
- Shielded FR2 / 4
- NHBB® FR2-5PP
- ADR FX1-8-ZZ
- FAG® RF820-ZZ
- BL5457
- R1F-518-ZZ
- R1F518ZZ
- RF820ZZ
- FR2-5A
- FX18ZZ
- FR2-5A-ZZMC3
- FR2-5-ZZ
- FR25PP
- FR25SS
- FR2-5SS
- FR25ZZ
- FR25AZZMC3
- FLRA25ZZA
- FBR18A2Z
- 518FCZZ
- FR2-5A Basic Size Ref
