R144A-ZZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

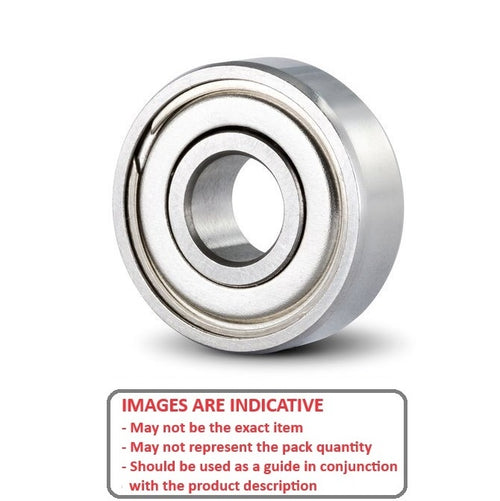

Double shielded economy bearing
- ID (d) : 3.175 mm
- O.D. (D) 6.350 mm
- Width (B) 2.779 mm
- Precision Grade Economy
- Closure Type ZZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R144A
- Limiting Speed 63650
- Cage Type Standard
- Static Load Rating KGf 9.5
- Dynamic Load Rating KGf 27.6
- Radii 0.10 mm
- Inner Shoulder (UI) 3.92mm
- Outer Shoulder (UO) 5.75 mm
- Number of Balls 7
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Duratrax® - Hyper-10 - Bearing
- Duratrax® - LXT Gas Conversion - Bearing
- Duratrax® - RC10T Gas Conversion - Bearing
- J Concepts - BJ4 - Bearing
- Schumaker® - Cat - Bearing
- Schumaker® - Cat 1998 - 2000 - Bearing
- Schumaker® - Cat 2000 - Bearing
- Schumaker® - Cat 2000 - Steering Lever Bearing
- Schumaker® - Cat 3000 With Steering - Bearing
- Schumaker® - FireBlade Evo - Bearing
- Schumaker® - Fusion - Bearing
- Schumaker® - Menace 21 - Bearing
- Schumaker® - MI2 - Bearing
- Schumaker® - MI2 EC - Bearing
- Schumaker® - Mission With Steering - Bearing
- Schumaker® - Nitro Fusion 21 and RTR - Bearing
- Schumaker® - SST 2000 - Bearing
- Schumaker® - SST 2000 98 - Bearing
- Schumaker® - SST 2000 99 - Bearing
- Schumaker® - SST 2000 Pro - Bearing
- Schumaker® - SST 2000 Pro With Steering - Bearing
- Schumaker® - XLS Cat - Bearing
- Team Associated® - GT-2RS - Bearing
- Team Associated® - Nitro TC3 - Bearing
- Team Associated® - Nitro TC3 RTR - Bearing
- Team Associated® - Nitro TC3 RTR Plus On Road - Bearing
- Team Associated® - Nitro TC3 With Steering - Bearing
- Trinity® - Reflex 10 - Bearing
Cross References
- Shielded Width A R144/2.779
- Shielded R144A / 3
- R144A Basic Size Ref
