RPO-031-033-C - Datasheet
MBA
Category Information

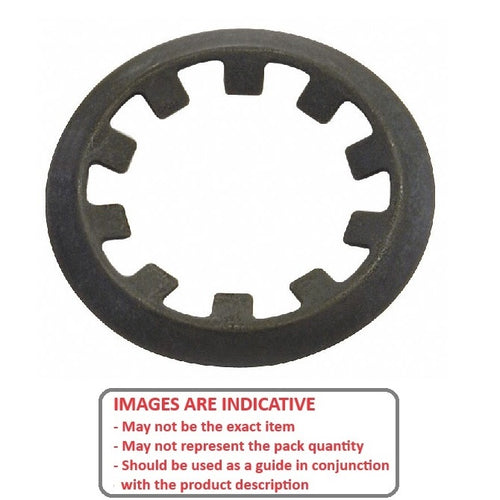

Retaining Rings - Push On - Carbon SteelCarbon Steel Push On Retaining Rings. M1465 / DTX / Seeger ZA and KS.
- An expanded range may be available on special order. Please enquire.
- Thrust load shown is calculated for ideal conditions with mild steel shaft.
- If no thrust load is shown, testing is suggested.
Product Data

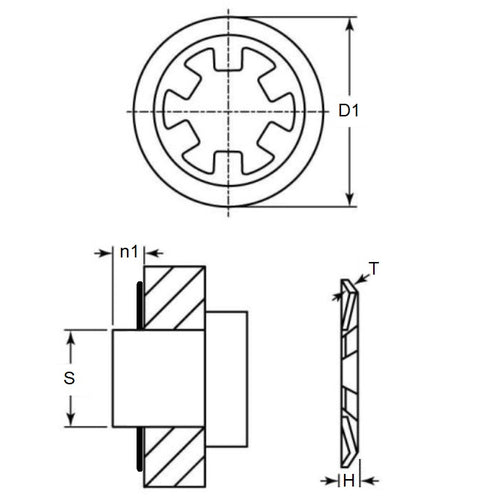

- Min shaft size (s1) : 3.07 mm
- Max Shaft Size (s2) 3.28 mm
- Outside diameter (D1) 9.30 mm
- Min shaft extension (n1) 1.47 mm
- Height (H) Max. 0.74 mm
- Material Thickness (t) 0.25 mm
- Approx. Thrust Load 20 kg
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Waldes® 5115-012
- 98430A116
- Huyett® TX-012
- NoCor® TX-012
- Rotor Clip® TX-012
- TX012
- N14650012
- N1465-0012
- N14650012APP
- N1465-0012APP
- N1465012
- N1465-012
- 5115012
