RCL-030-072-Z - Datasheet
MBA
Category Information

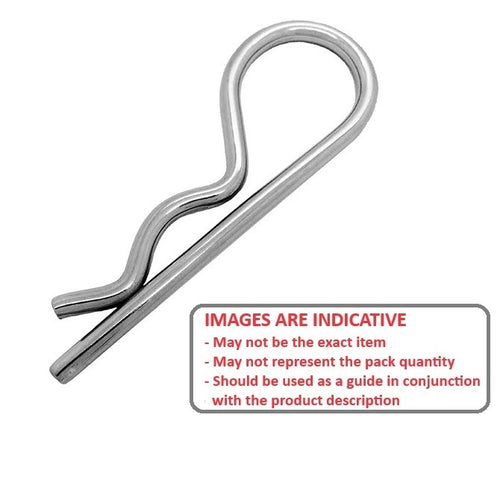

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

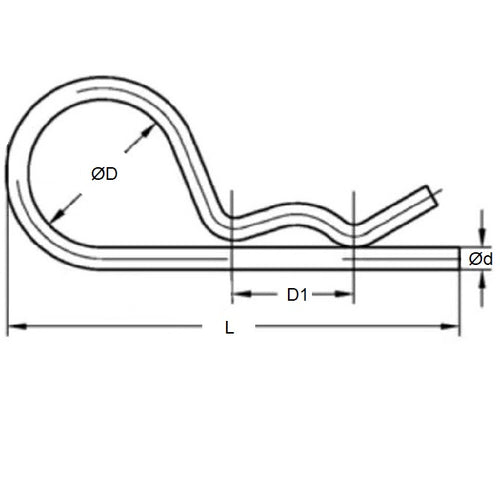

- Wire Thickness (d) : 3.00 mm
- Length (L) 72.0 mm
- Material Zinc Plated
- Drill Hole Size 3.50 mm
- Approx.Inside Eye (D) 16.00 to 18.00 mm
- Shaft Size Range 10.00 to 16.00 mm
- Approx. Bridge Length (D1) 25 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98350A920
- RPS360
- RPS3-60
