RP020-0160-C - Datasheet
SSA
Category Information

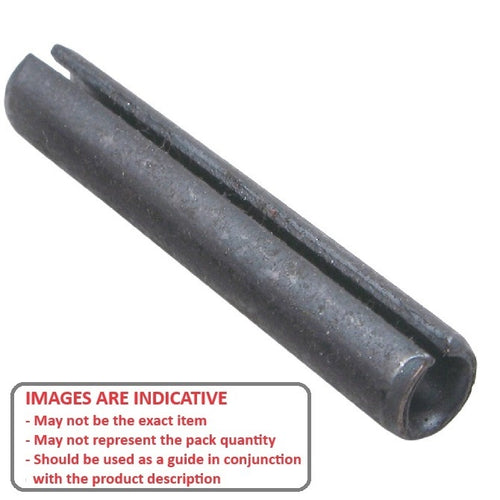

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 2.00 mm
- Length (L) 16.00 mm
- Free Diameter 2.20 mm
- Thickness (S) 0.45 mm
- Chamfer Length (cL) 0.20-0.80 mm
- Chamfer Diameter (cD) 1.9 mm
- Standard B18.8.4M
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802024
- 91611A107
- Huyett® SPCM-020-016
- NoCor® SPM-020-016
- NoCor® SPMP-020-016
- Brighton Best® Spring-Pin-M2x16
- SAP2-16
- SAP216
- SpringPinM2x16
- MD1481MQB020X016
- SPM020016
- SPMP020016
