TLB-2012-0286 - Datasheet
MBA
Category Information

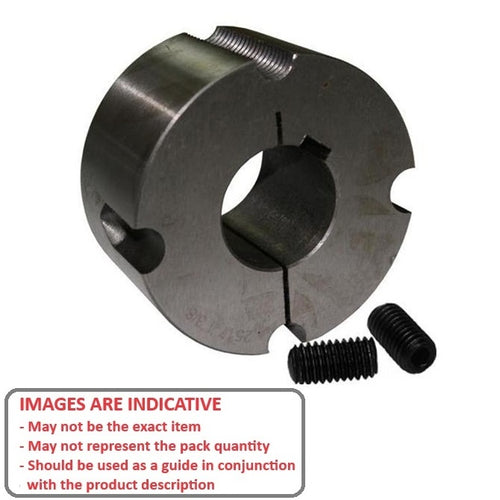

Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data

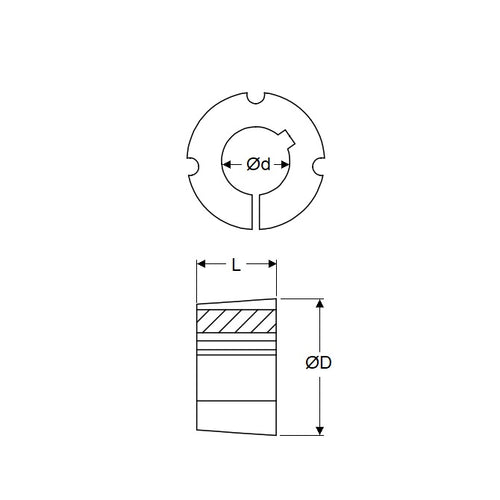

- Bore (d) : 28.575 mm
- Large End Dia. (D) 70.0 mm
- Length (L) 31.8 mm
- Taperlock Series 2012
- No of Screws 2
- Screw Size 7/16x7/8 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 57095K184
- TLB2012118
- TLB-2012-1-1-8
