GR-D64-04-0279-12-S41 - Datasheet
MBA
Category Information

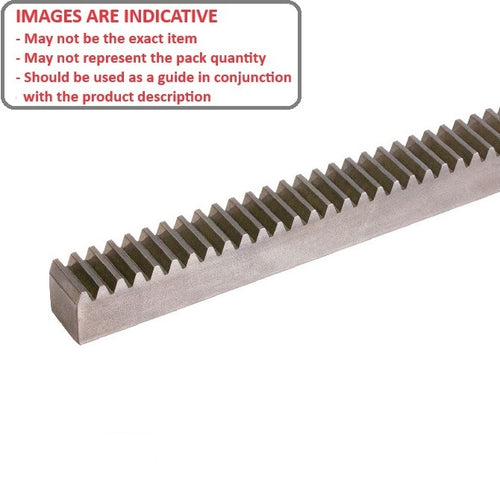

Gears - Rack - Imperial - 64DP Stainless64DP Stainless Imperial Rack Gears. 20 Degree Pressure Angle. 416 stainless steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
- 64 DP. Approx 1.25mm between teeth.
Product Data
- Length (L) : 279.40 mm
- Face Width (fw) 4.242 mm
- Height (h) 12.192 mm
- Pitch Type 64DP
- Pitch Height (ph) 11.796 mm
- Pressure Angle 20 °
- Precision Precision
- Mounting Holes None
- Shape Rectangular
- Material Stainless Steel AISI 416 Rc 36-42
Product Compliance and Data
Additional Resources
Cross References
- R64-11SS
- R6411SS
- S1811YRB4P
- S1811Y-RB-4P
