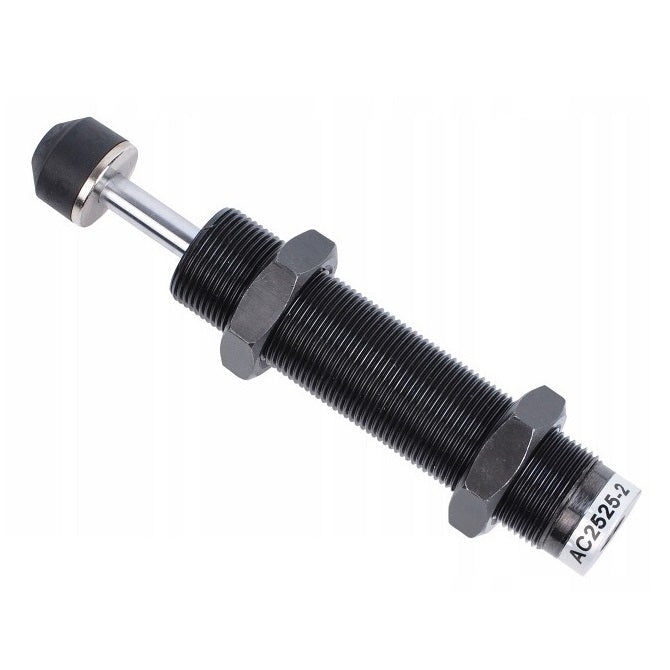

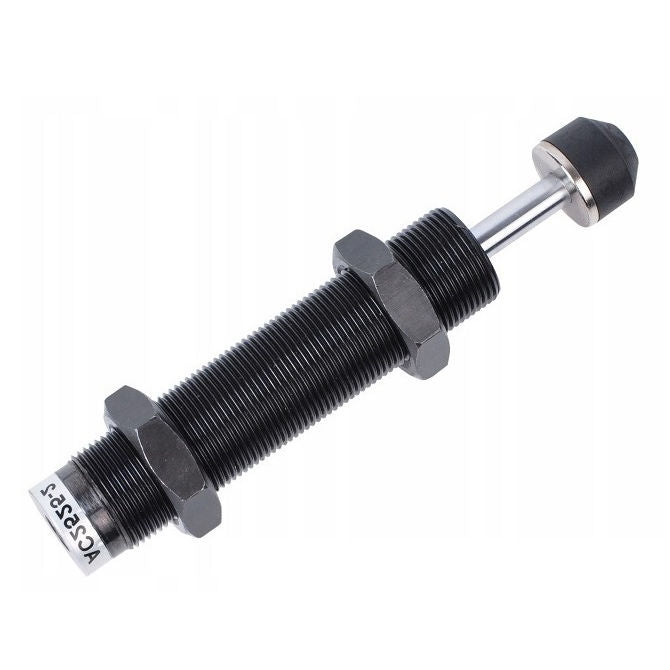

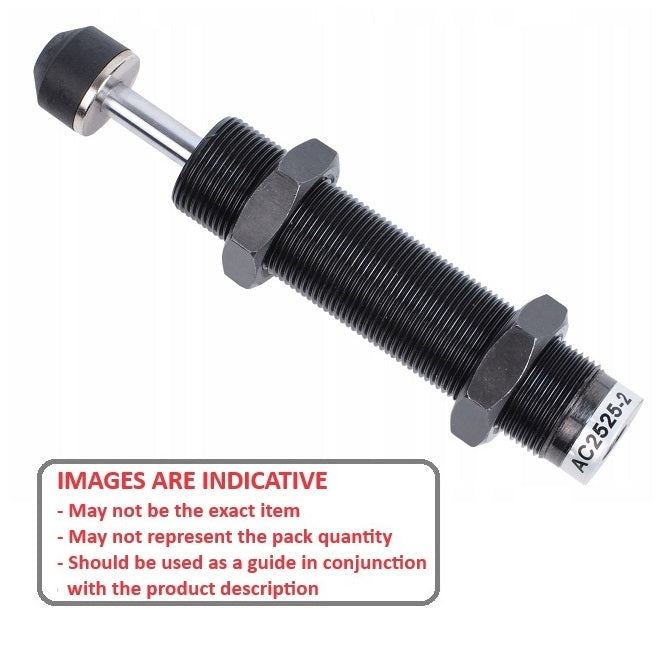

AC-2525-2 - Datasheet
C-JAC
Category Information
Shock Absorbers - Hydraulic - Non-Adjustable - C-JacC-Jac Non-Adjustable Hydraulic Shock Absorbers. Self compensation
Product Data

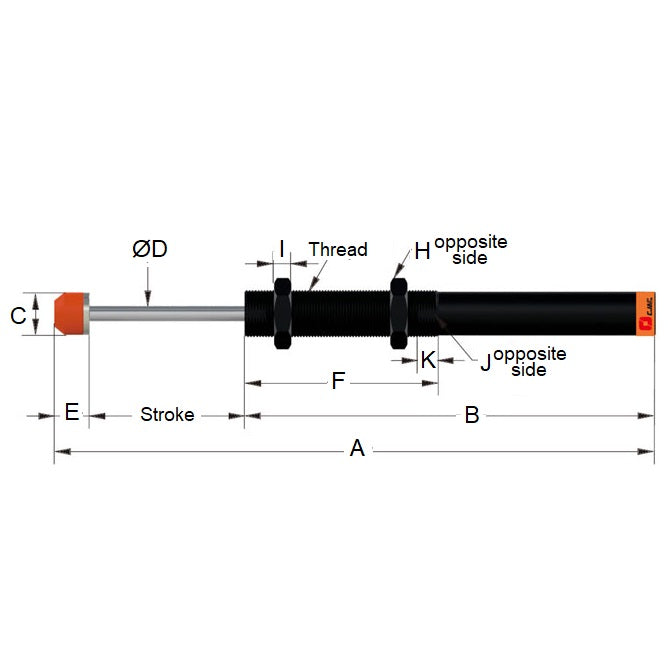

- Stroke : 25.0 mm
- Thread (C) M25x1.5
- Length (A) 155.5 mm
- Shaft Size (D) 8.0 mm
- Max. Effective Mass 800 Kg
- Max. Nm Per Cycle 80
- Max. Nm Per Hour 54000
- Max Impact Speed 2.5 m/s
- Weight 330 g
- Body Length (B) 101 mm
- Tip Length x Diameter (CxE) 22x19.5 mm
- Figure Figure 2.
