Miniature Bearings Australia
TLB-2012-0254 - Datasheet
MBA
Category Information
Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

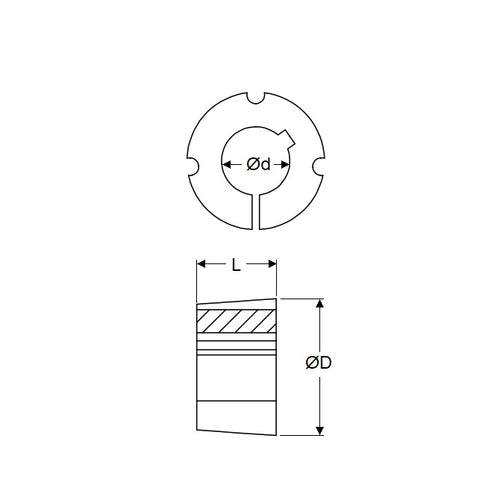

- Bore (d) : 25.400 mm
- Large End Dia. (D) 70.0 mm
- Length (L) 31.8 mm
- Taperlock Series 2012
- No of Screws 2
- Screw Size 7/16x7/8 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 57095K183
- TLB20121
- TLB-2012-1
