LCSQCL-0254-F - Datasheet
MBA
Category Information

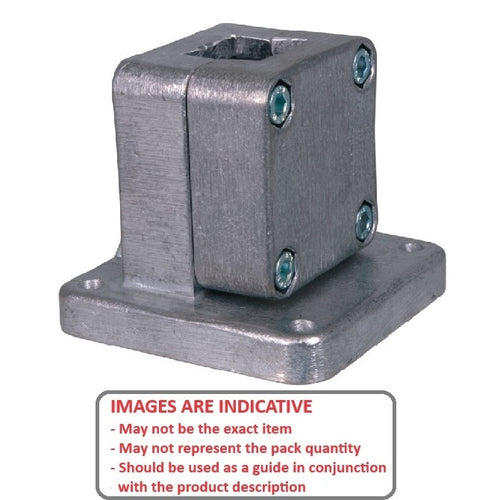

Linear - Housing Clamps SquareHousing Clamps Square Linear. Square Housing Clamps for Square Linear Shafting.
Product Data

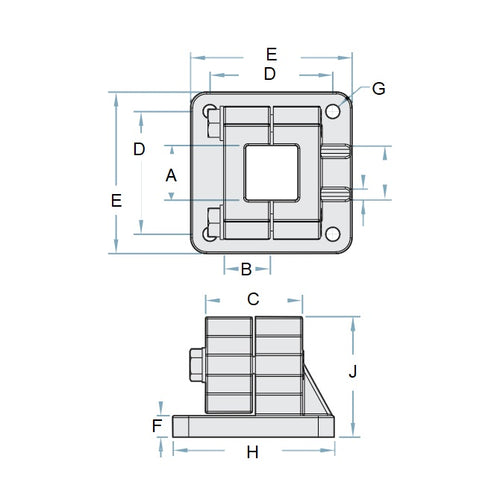

- Suitable Shaft Diameter : 25.40 mm
- Type Flanged Base
- B 24.99 mm
- C 48.01 mm
- D 59.99 mm
- E 64.01 mm
- F 11.99 mm
- G 6.50 mm
- H 81.99 mm
- J 73.03 mm
Product Compliance and Data
Additional Resources
Cross References
- 60255K32
- Reid Tool® PBC-500
- PBC500
