Small Parts & Bearings
Miniature Bearings Australia

CFB025-30-060M-R45 - Datasheet

MBA

Category Information

Mounts - Buffer - Female

Female Buffer Mounts. Vibration dampening

  • An expanded range may be available on special order. Please enquire.
  • Also see Bumpers

Product Data

  • Nom. Body Diameter (D) : 25.0 mm
  • Body Height (H) 30.0 mm
  • Thread Size M6x1
  • Shore Hardness 45
  • Compression Load 39 Kg (lbs)
  • Deflection 7.5 mm
  • Configuration Female to Blank
  • Material Natural Rubber
Country of Origin: GB

Product Compliance and Data

Additional Resources

Cross References

  • 2530FFB0645
  • 2530FFB06-45
View full details

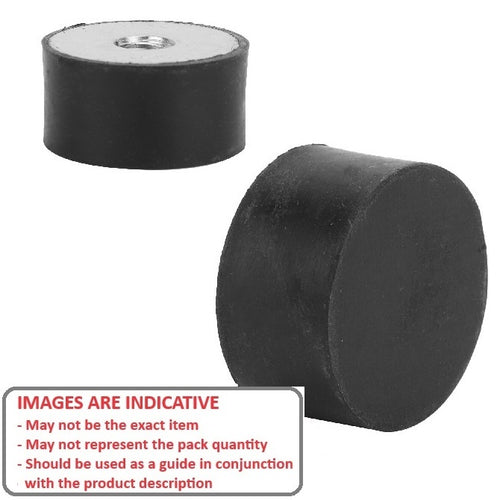

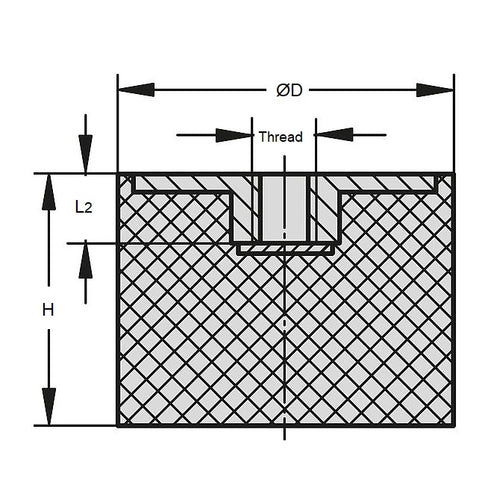

CFB025-30-060M-R45DiagramCFB025-30-060M-R45Image
