CMF025-15-060M18-R60 - Datasheet
MBA
Category Information

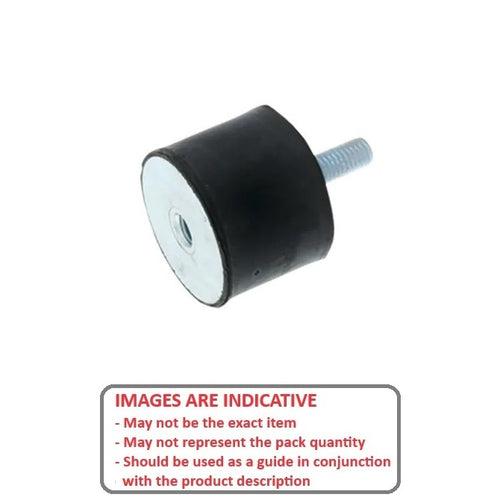

Mounts - Bobbin - Male to FemaleMale to Female Bobbin Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
Product Data

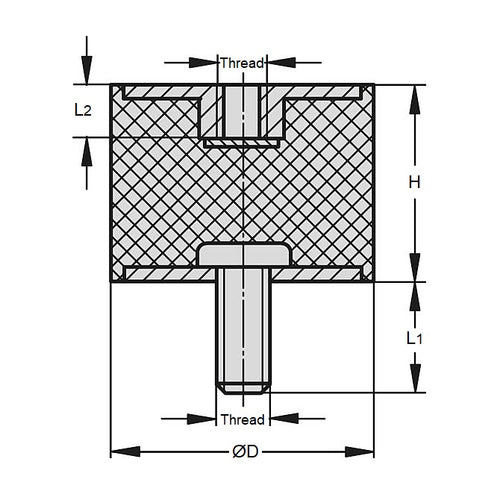

- Nom. Body Diameter (D) : 25.0 mm
- Body Height (H) 15.0 mm
- Thread Size M6x1
- Shore Hardness 60
- Thread Length/Depth (L1/L2) 18.0 / 6.0 mm
- Compression Load 35 (75) Kg (lbs)
- Deflection 1.2 mm
- Max Shear Load 6.1 (13.4) Kg (lbs)
- Configuration Male to Female
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- AVI 2515MF18-60-M6
- 2515MF1860M6
