ORB-02477-533-CR70-318 - Datasheet

MBA

Category Information

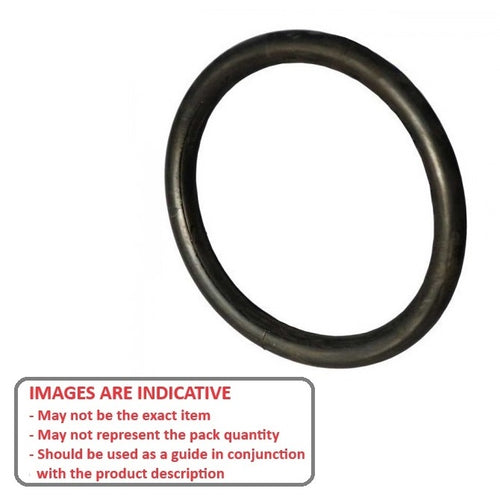

O-Rings - General Purpose - Neoprene Rubber Bulk

Neoprene Rubber Bulk General Purpose O-Rings. Excellent resistance to ageing and weathering effects.

  • Neoprene and Nitrile O-Rings with excellent resistance to ageing and weathering effects.
  • Mulitple packs may be supplied together in a singular package.
  • Temperature Range: -20 Deg C to +100 Deg C.
  • Resistant to ozone and refrigeration chemicals such as freon 12 and 22.
  • Moderate resistance to swelling in mineral oils, greases and water.
  • Not resistant to aromatic compounds such as benzene, toulene, chlorinated hydrocarbons, esters, ethers or ketones.
  • Bulk stock orders are the most economical way to purchase, but smaller packs are available for some sizes.

Product Data

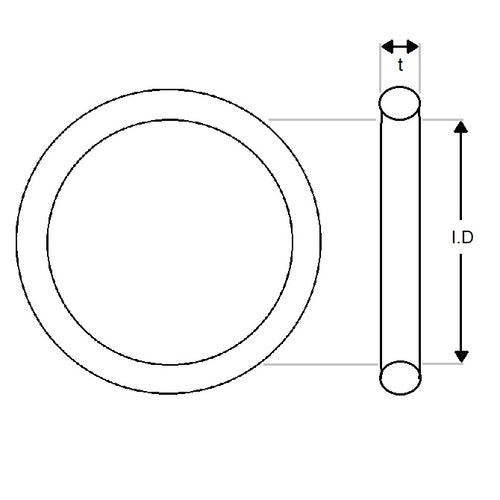

  • Inside Diameter (ID) : 24.77 mm
    (Equiv. 0.975 in.)
  • Section (t) 5.33 mm
    (Equiv. 0.21 in.)
  • Colour Black
  • Hardness Duro 70
  • Material Neoprene Rubber
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • OR-02477-533-CR70-318
  • OR02477533CR70318
