MLF-127C-S6 - Datasheet
MBA
Category Information

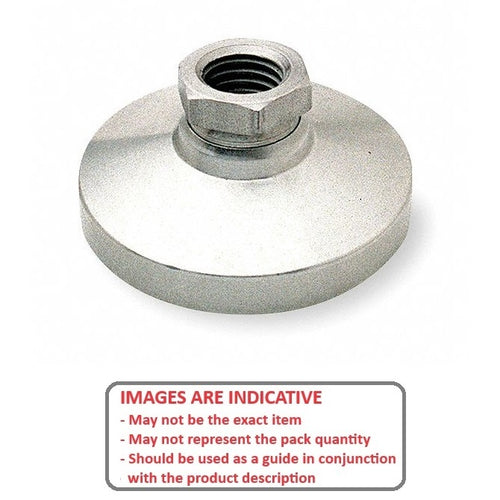

Mounts - Levelling Socket - Standard - 316 Stainless316 Stainless Standard Levelling Socket Mounts. Levelling adjusters. For levelling machine tools, electronic racks, benches etc on uneven surfaces.
- An expanded range may be available on special order. Please enquire.

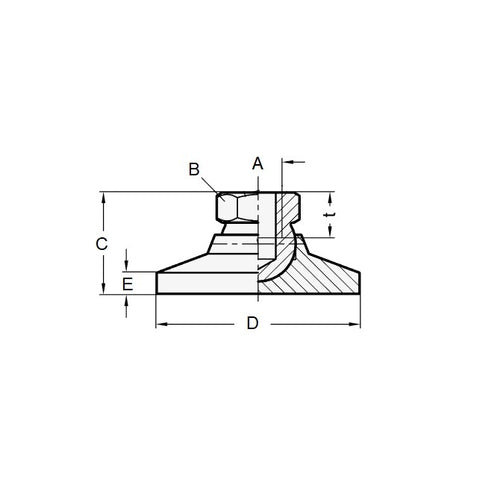

Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D) 47.6 mm
- Foot Height (C) 28.6 mm
- Min. Thread Depth 11.2 mm
- Base Height (E) 6.35 mm
- Load Rating 2270 Kg
- Hex Flats (B) 19.05 mm
- Material Stainless Steel 316 (Similar to A4 or 18-10)
Product Compliance and Data
Additional Resources
Cross References
- 6103K154
- Reid Tool® HVL-1SS
- Reid Tool® LSS-1
- HVL1SS
- LSS1
- MLF2270127CS6
