Miniature Bearings Australia
MPL-0227-P - Datasheet
MBA
Category Information

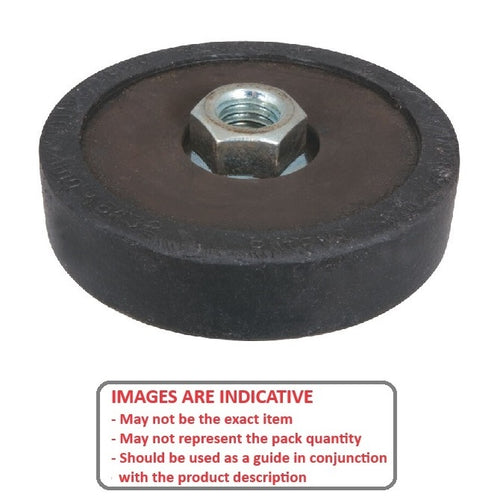

Mounts - Pivotal Levellers - Base Without StudBase Without Stud Pivotal Levellers Mounts. Tough bonded neoprene. Patented pivotal leveler keeps equipment level and dampens an average 85% of noise. Adjusters.
- The mounting nut which holds the stud is molded into the pad in a steel bracket and rotates freely permitting at least 6.35mm of leveling.
- No stud included so you can use your own custom stud.
Product Data
- Max Load : 226.8 Kg

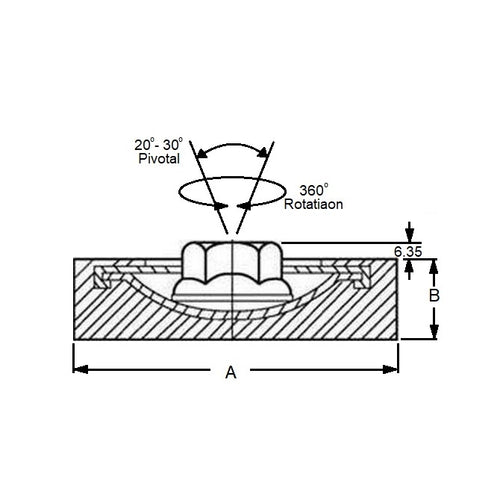

- Base Diameter (A) 76.200 mm
- Base Height (B) 19.050 mm
- Thread Size 1/2-13 UNC (12.70mm)
- Type Round
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- 63965K62
- Reid Tool® TPL-530
- TPL530
