SLH-2223-3493-10160 - Datasheet
MBA
Category Information

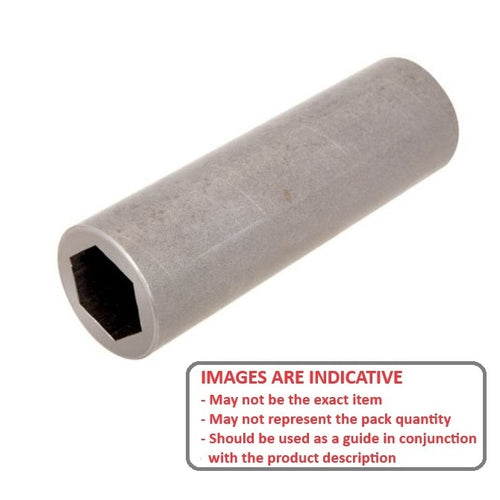

Sleeves - Hex Hole - Carbon SteelCarbon Steel Hex Hole Sleeves. Carefully turned to provide 0.076mm (0.003in) concentricity ID to OD.
- Precisely machined, round outer surface and a uniform, precisely broached hex-shaped hole completely through its center.
Product Data

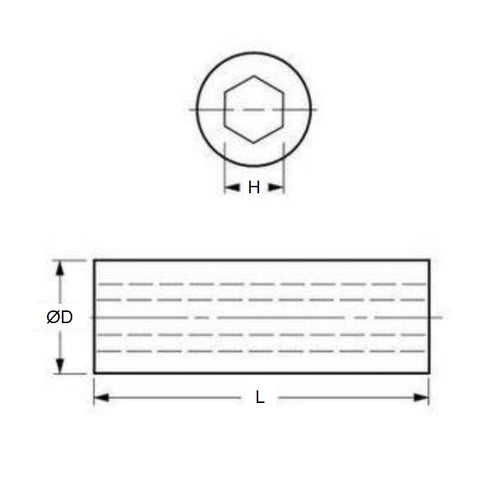

- Nominal Hex Size : 22.225 mm
- Outside Diameter (OD) 34.925 mm
- Length (L) 101.600 mm
- Actual Hex Size (H) 22.301 mm
- Material Carbon Steel 11L17
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® HHS-20
- HHS20
