BLB-02103-01111-W3 - Datasheet
Iglidur
Category Information

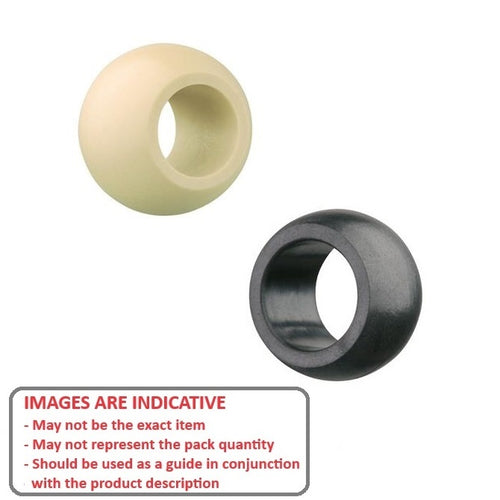

Balls - Bored - PlasticPlastic Bored Balls. Similr to the style used in plastic rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Igildur W300. Corrosion Resistant. Maintenance Free - Self Lubricating.
- High wear resistance at medium temperatures. Low moisture absorption.
- Suitable for rotating, oscillating and linear movement. Lightweight.

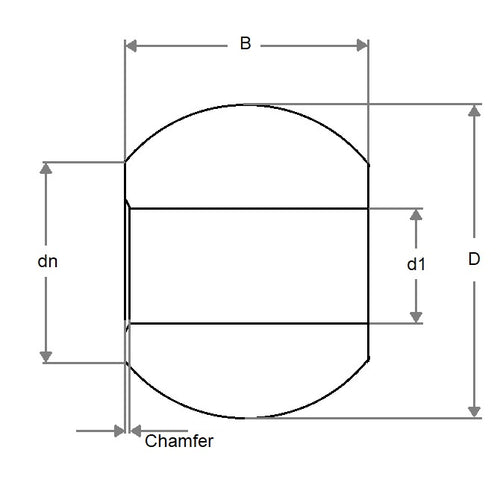

Product Data
- Diameter (D) : 21.03 mm
- Inside Diameter (d1) 11.110 mm
- Width (B) 14.27 mm
- Shoulder Diameter (dn) 15.27 mm
- Chamfer 0.3X30 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus® WKI-07
- WKI07
