W0200-LE-032-014-S4 - Datasheet
MBA
Category Information

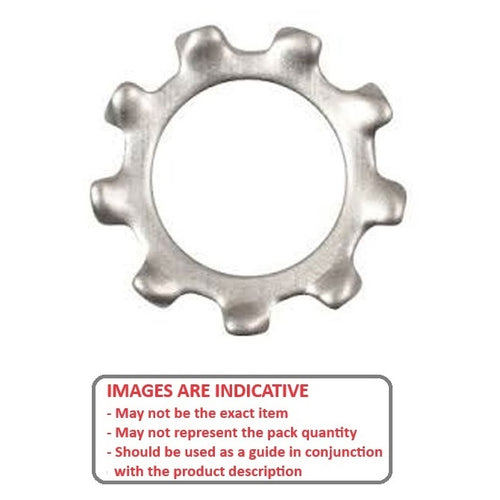

Washers - Lock - External Tooth - Stainless SteelStainless Steel External Tooth Lock Washers. Stainless steel, external toothed selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

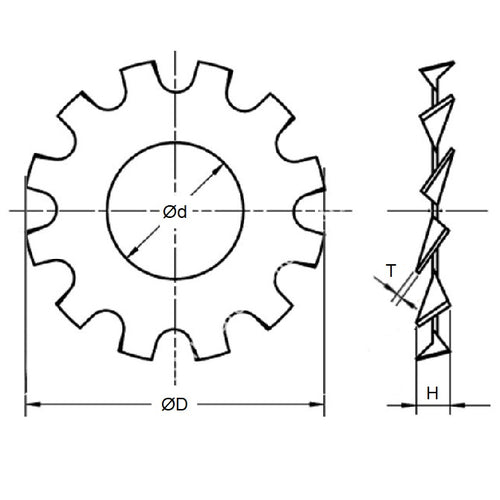

- Nominal Inside Diameter : 20.00 mm
- Outside Diameter 32 mm
- Material Thickness (T) 1.40 mm
- Nominal Screw Size M20
- Actual ID (Ref) 20.5 mm
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 95060A450
