CCI-02000-C - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data

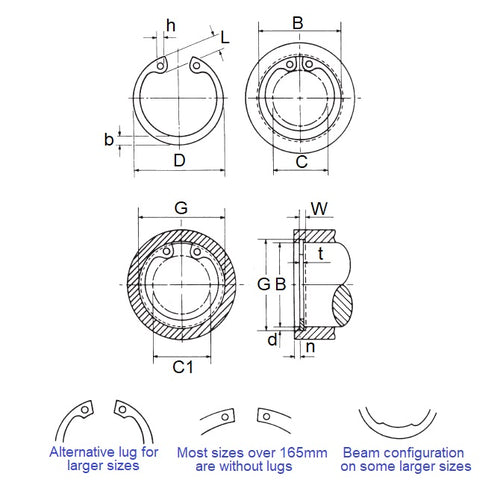

- Housing Bore (B)
:
20.00
mm
(Equiv. 0.787 in.) - Clip Thickness (T)
1.00
mm
+ 0.00 / - 0.06
(Equiv. 0.039 in.) - Groove Dia. (Dg)
21.00
mm
+ 0.13 / - 0.00
(Equiv. 0.827 in.) - Approx. Loose Circlip OD (Dr) 21.50 mm + 0.42 / - 0.13
- Groove Width (W) 1.10 mm + 0.08 / - 0.00
- Clearance in Bore (C) 11.20 mm
- Clearance in Groove (C1) 12.60 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.50
- Standard DIN472
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 472-020
- 98455A120
- Bossard® BN-822-020
- Waldes® D1300-020
- Huyett® DHO-020
- NoCor® DHO-020
- Rotor Clip® DHO-020
- Seeger® J-020
- Seeger® J20
- Seeger® J20-BLS
- Seeger® J20X1
- Seeger® NZT.J20
- D1300020
- D1300-0200
- D13000200APP
- DHO020
- D1300-0200APP
- 472020
- MD0472MQB020
- J20BLS
- J020
- BN822020
- CCI02000C
