W0028-CU-010-021-BNP - Datasheet
MBA
Category Information

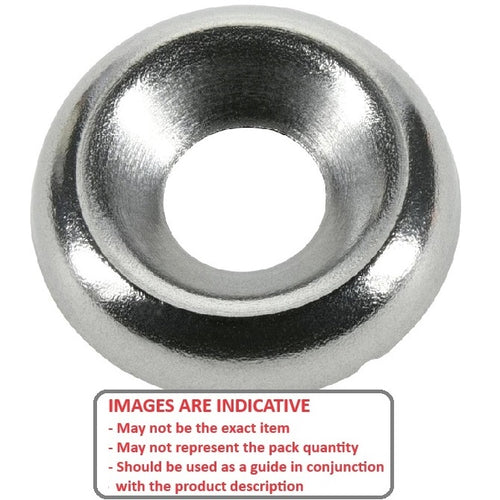

Washers - Cup - Brass - Nickel PlatedNickel Plated Brass Cup Washers. Nickel plated brass cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.
Product Data

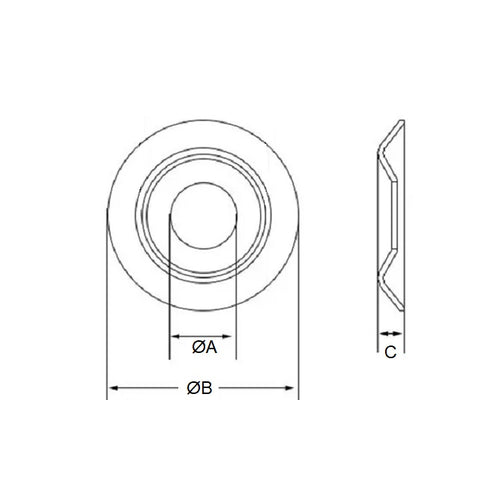

- Nominal Inside Diameter (A) : 2.845 mm
- Nominal Outside Diameter (B) 9.50 mm
- Nom. Section (C) 2.10 mm
- Size 4 UNC / UNF
- Actual ID (Ref) 3.4 mm
- Material Brass Nickel Plated
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000492
- 92922A005
- WASCA WSCBNIPNO4
