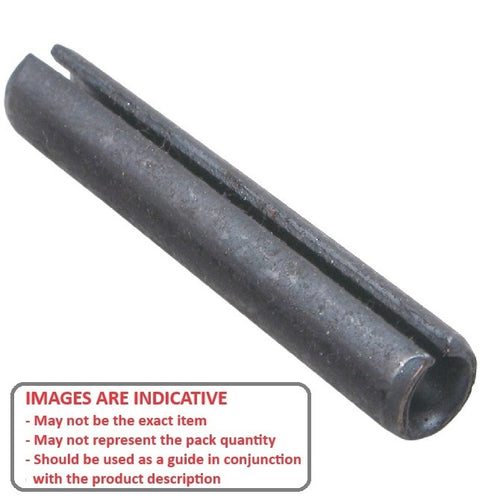

RP025-0240-C - Datasheet
ENQUIRE
Category Information
Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Diameter (D) : 2.50 mm
- Length (L) 24.00 mm
- Free Diameter 2.75 mm
- Thickness (S) 0.50 mm
- Chamfer Length (cL) 0.40-0.60 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802081
- 91611A098
- NoCor® SPM-025-024
- Brighton Best® Spring-Pin-M2.5x24
- SpringPinM25x24
- SPM025024
