Miniature Bearings Australia

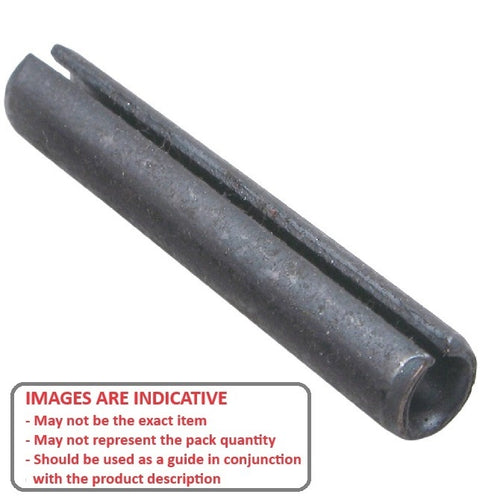

RP025-0200-C - Datasheet
MBA
Category Information
Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 2.50 mm
- Length (L) 20.00 mm
- Free Diameter 2.75 mm
- Thickness (S) 0.50 mm
- Chamfer Length (cL) 0.40-0.60 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802075
- 91611A097
- NoCor® SPM-025-020
- Huyett® SPM-025-020-I
- NoCor® SPMP-025-020
- Brighton Best® Spring-Pin-M2.5x20
- SAP2520
- SAP2.5-20
- SpringPinM25x20
- MD1481MQB025X020
- SPM025020
- SPMP025020
