Miniature Bearings Australia

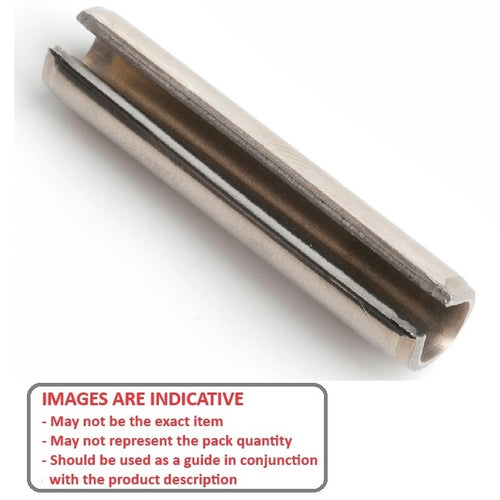

RP025-0180-4 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 2.50 mm
- Length (L) 18.00 mm
- Free Diameter 2.75 mm
- Thickness (S) 0.50 mm
- Chamfer Length (cL) 0.40-0.60 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPM3P-025-018-A
- NoCor® SPM3P-025-018-A
- NoCor® SPMS-025-018-304SS
- SRP2.5-18
- SRP2518
- SPMS025018304SS
- SPM3P025018A
