NT022C-HXT-W-NY - Datasheet
MBA
Category Information

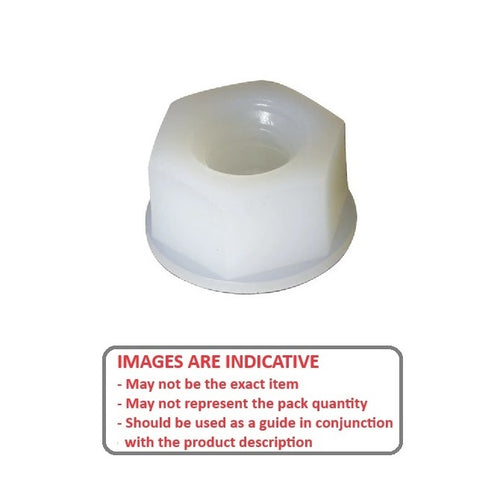

Nuts - Hexagonal - Full - Nylon - Self TappingSelf Tapping Nylon Full Hexagonal Nuts. Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- An expanded range may be available on special order. Please enquire.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
- Thread Size : 2-56 UNC (2.18mm)

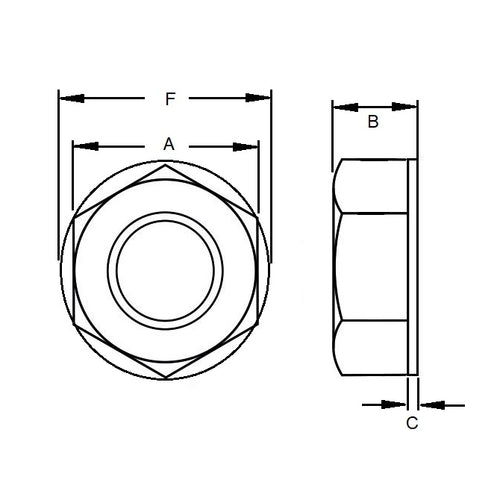

- Thickness (H) 3.56 mm
- Across Flats (A/F) 4.57 mm
- Round Base Diameter (F) 5.56 mm
- Type Self Tapping Hex Nut
- Base Thickness ( C ) 0.254 mm
- Pitch 0.454 mm
- Threads Per Inch 56 TPI
- Material Nylon (Zytel 101)
