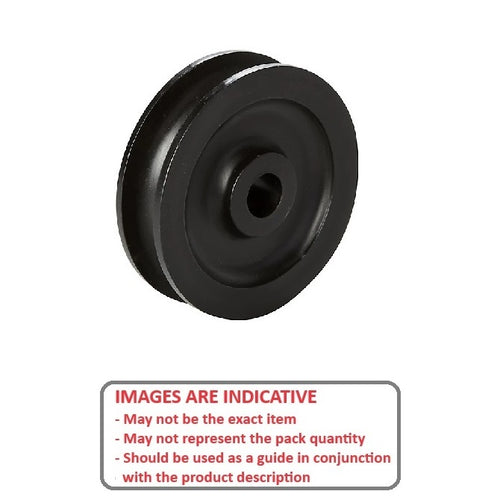

PUI024-0381-065-A - Datasheet
MBA
Category Information
Pulleys - U Groove Idler - Single Row - Plastic With Plain BorePlastic With Plain Bore Single Row U Groove Idler Pulleys. Plastic and Steel with Steel Ball Bearings or Plain Bearings.
- Use with round belts such as Round Seamless Urethane or O-Rings
- Also used to run on round shafting or curved tracks
Product Data
- Maximum Cable Diameter (H)
:
2.39
mm
+/- 0.127
(Equiv. 0.094 in.) - Outside Diameter (OD) 38.10 mm
- Bore (B) 6.452 mm
- Overall Width (OAL) 7.137
- Dia. to Base of Groove (P) 31.75 mm
- Type Plain Bearing - Light Duty
- Groove Radius (R) 1.17
- Material Acetal - Black
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® CBL-860
- A6M902408
- A6M9-02408
- CBL860
