KW-024-034-077-CH - Datasheet
ExaktKey
Category Information

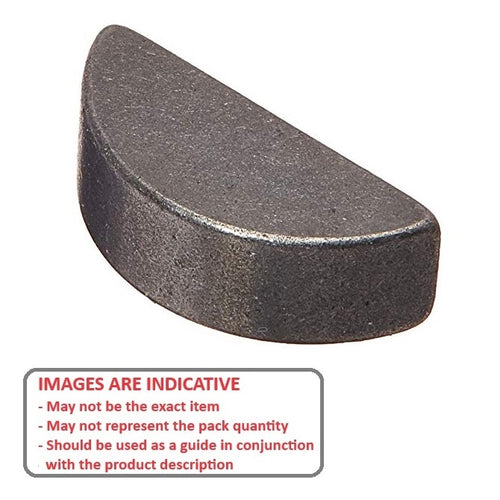

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data
- Thickness (S)
:
2.38
mm
+/- 0.025
(Equiv. 0.094 in.) - Approx. Height (H)
3.4
mm
+/- 0.250
(Equiv. 0.134 in.) - Approx. Length (L) 7.65 mm
- Basis Diameter (D) 7.94 mm
- Finish Plain
- Hardness HRC 40-50
- Material Carbon Steel C45 Hardened
Product Compliance and Data
Additional Resources
Cross References
- ANSI 302.5-H
- NoCor® 3025H
- 98525A060
- Key Size 207 Hardened
- Huyett® WKA-207
- NoCor® WKA207
- KW024079CH
