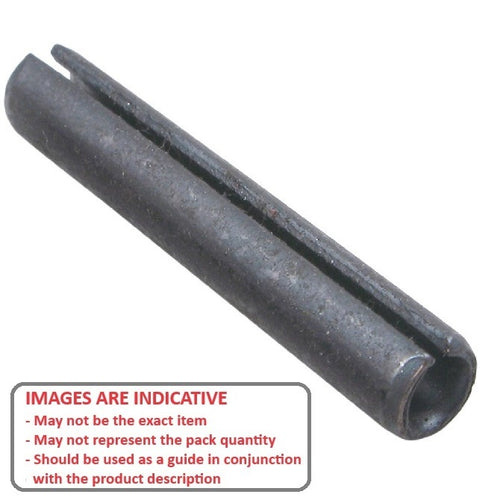

RP024-0079-C - Datasheet
MBA
Category Information
Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 2.38 mm
- Length (L) 7.92 mm
- Free Diameter 2.62 mm
- Thickness (S) 0.56 mm
- Chamfer Length (cL) 0.20-0.97 mm
- Chamfer Diameter (cD) 2.3 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 801042
- 98296A829
- NoCor® SPP-093-0311
- Huyett® SPP-093-0312
- NoCor® SPP-093-0312
- SPP0930312
- SPP0930311
- A9C35-0310
- A9C350310
