RP024-0254-420 - Datasheet
MBA
Category Information

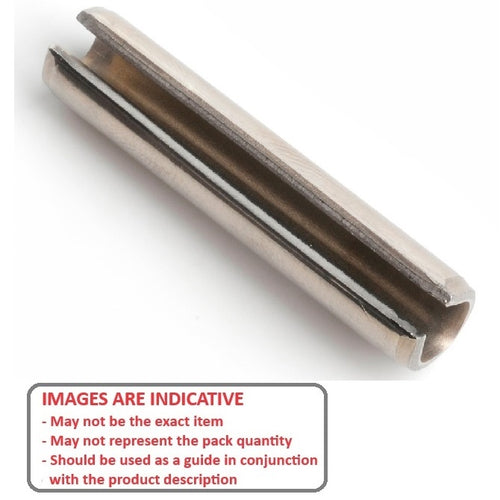

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 2.38 mm
- Length (L) 25.40 mm
- Free Diameter 2.62 mm
- Thickness (S) 0.56 mm
- Chamfer Length (cL) 0.20-0.97 mm
- Chamfer Diameter (cD) 2.3 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- 92383A212
- Reid Tool® P-145
- NoCor® SPS420-094-1000-420SS
- NoCor® SPSP-094-1000-420SS
- SPSP0941000420SS
- SPS4200941000420SS
- P145
- A9Y350332
- A9Y35-0332
